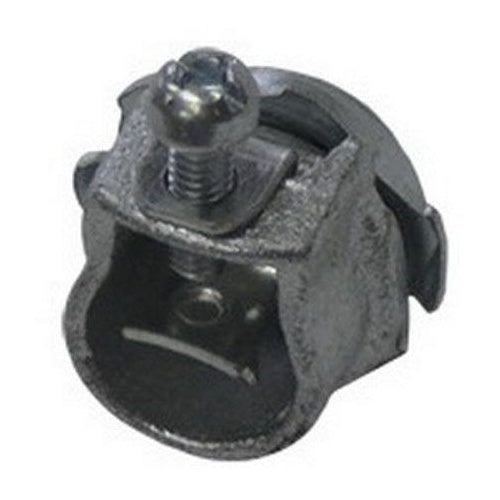

Appleton 7230V 3/8 Malleable 1-Screw Flex/Bx Connector

Overview

Appleton 7230V 3/8 Malleable 1-Screw Flex/Bx Connector

Product Specifications

• UPC: 78138177250
• Installation: Screw
• Throat Type: Non-Insulated
• Material: Zinc Electroplated Malleable Iron
• Approval: UL, CSA
• Additional Information: Includes Locknut; Application Commercial and Industrial; Applicable Standard NEC/CEC, NEMA FB-1
• Catalog Number: 7230V
• Type: Straight
• Trade Size: 3/8 Inch
• Knockout Size: 1/2 Inch
• Cable Opening: Single
• Cable/Conduit Type: Armored Cable/Flexible Metal Conduit
• Cord Size: 0.34 to 0.63 Inch
• Length: 1.07 Inch
• Catalog Description: STRAIGHT CONDUIT CONNECTOR, SIZE: 3/8 IN, CONNECTION: ARMORED GROUND WIRE X NONMETALLIC SHEATHED CABLE, CONDUCTOR RANGE: 0.34 - 0.63 IN, MATERIAL: DIE-CAST ZINC, HEIGHT: 0.63 IN, WIDTH: 1 IN, THREAD LENGTH: 0.44 IN, KNOCKOUT SIZE: 1/2 IN, S
• Category: Bx, Mc, Armored Cable Fittings
• Full Technical Description: Straight Type; Zinc Plated Malleable Iron Material; UL 514B, CSA C22.2 Approval; 3/8 Inch Trade Size; 1/2 Inch Knockout Size; 0.34 to 0.63 Inch Cord Size; Armored Ground Wire/Non-Metallic Sheathed Cable; Single Cable Opening; Application Commercial/Industrial; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Armored Cable/Flex Conduit Connector
• Unspsc: 39121419
• UPC 12 Digit: 781381772501
• SKU Name: app 7230v

Resources

• Manufacturer Spec Sheet
