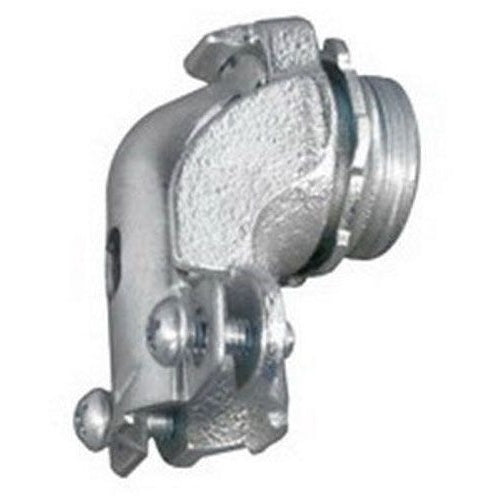

Appleton 7380V 3/8 90D 2-Screw Flex/Bx Connector

Overview

Appleton 7380V 3/8 90D 2-Screw Flex/Bx Connector

Product Specifications

• UPC: 78138177320
• Material: Zinc Electroplated Malleable Iron
• Approval: UL 514B, CSA C22.2
• Catalog Number: 7380V
• Type: 90 Degree
• Trade Size: 3/8 Inch
• Knockout Size: 1/2 Inch
• Cable Opening: Single
• Cable/Conduit Type: Armored Cable/Flexible Metal Conduit
• Cord Size: 0.31 to 0.63 Inch
• Throat Type: Non-Insulated
• Catalog Description: 90 DEG CONDUIT CONNECTOR, SIZE: 3/8 IN, CONNECTION: ARMORED CABLE X FLEXIBLE METAL CONDUIT, CONDUCTOR RANGE: 0.31 - 0.63 IN, MATERIAL: MALLEABLE IRON/STEEL, FINISH: ZINC ELECTROPLATE, HEIGHT: 3/4 IN, WIDTH: 1-1/4 IN, THREAD LENGTH: 0.44 IN,
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: 90 Degree Type; Zinc Electroplated Malleable Iron/Steel Material; 1.19 Inch; UL 514B, CSA C22.2 Approval; 3/8 Inch Trade Size; 1/2 Inch Knockout Size; 0.31 to 0.63 Inch Cord Size; Non-Insulated Throat Type; Armored Cable/Flexible Metal Conduit; Single Cable Opening; Application Commercial/Industrial; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Armored Cable/Flex Conduit Connector
• Unspsc: 39121419
• UPC 12 Digit: 781381773201
• SKU Name: app 7380v
