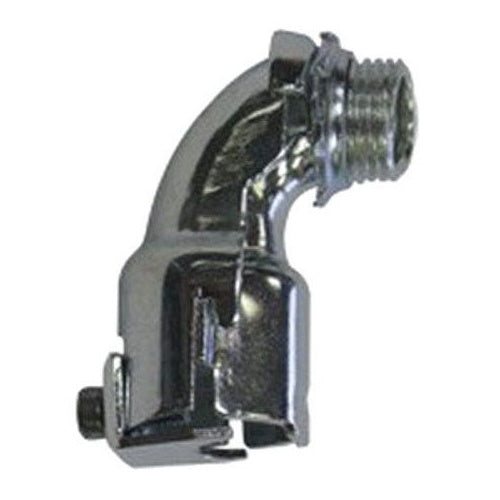

Appleton 7384I 1-1/4" 1.468-1.781 Insulated Connector

Overview

Appleton 7384I 1-1/4" 1.468-1.781 Insulated Connector

Product Specifications

• UPC: 78138144006
• Approval: UL 514B, CSA C22.2
• Additional Information: Used On Armored Cable/Flexible Metal Conduit; Applicable Standard NEMA FB-1
• Catalog Number: 7384I
• Type: 90 Deg
• Trade Size: 1-1/4 Inch
• Cable Opening: Single
• Cable/Conduit Type: Armored Cable/Flexible Metal Conduit
• Cord Size: 1.47 to 1.78 Inch
• Throat Type: Insulated
• Material: Electro Zinc Plated Malleable Iron
• Catalog Description: 90 DEG CONDUIT CONNECTOR, SIZE: 1-1/4 IN, CONNECTION: ARMORED CABLE X FLEXIBLE METAL CONDUIT, CONDUCTOR RANGE: 1.47 - 1.78 IN, MATERIAL: MALLEABLE IRON, FINISH: ZINC ELECTROPLATE, HEIGHT: 2.81 IN, WIDTH: 2-3/4 IN, THREAD LENGTH: 2-3/4 IN, S
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: 90 Degree Type; Zinc Electroplated Malleable Iron Material; UL 514B, CSA C22.2 Approval; 1-1/4 Inch Trade Size; 1.47 to 1.78 Inch Cord Size; Insulated Throat Type; Armored Cable/Flexible Metal Conduit; Single Cable Opening; Application Commercial/Industrial; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Armored Cable/Flex Conduit Connector
• Unspsc: 39121419
• UPC 12 Digit: 781381440066
• SKU Name: app 7384i
