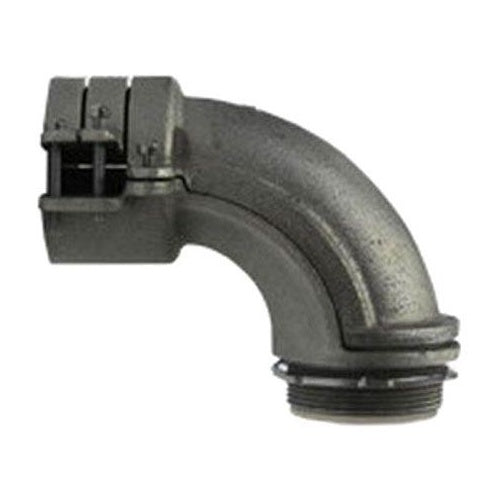

Appleton 7388I 3" 3.156-3.5 Insulated Connector

Overview

Appleton 7388I 3" 3.156-3.5 Insulated Connector

Product Specifications

• UPC: 78138144011
• Approval: UL 514B, CSA C22.2
• Additional Information: Used On Armored Cable/Flexible Metal Conduit; Applicable Standard NEMA FB-1
• Catalog Number: 7388I
• Type: 90 Deg
• Trade Size: 3 Inch
• Cable Opening: Single
• Cable/Conduit Type: Armored Cable/Flexible Metal Conduit
• Cord Size: 3.16 to 3.5 Inch
• Throat Type: Insulated
• Material: Electro Zinc Plated Malleable Iron
• Catalog Description: 90 DEG CONDUIT CONNECTOR, SIZE: 3 IN, CONNECTION: ARMORED CABLE X FLEXIBLE METAL CONDUIT, CONDUCTOR RANGE: 3.16 - 3-1/2 IN, MATERIAL: MALLEABLE IRON, FINISH: ZINC ELECTROPLATE, HEIGHT: 5.5 IN, WIDTH: 6.63 IN, THREAD LENGTH: 1.06 IN, STANDAR
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: 90 Degree Type; Zinc Electroplated Malleable Iron Material; UL 514B, CSA C22.2 Approval; 3 Inch Trade Size; 3.16 to 3.5 Inch Cord Size; Insulated Throat Type; Armored Cable/Flexible Metal Conduit; Single Cable Opening; Application Commercial/Industrial; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Armored Cable/Flex Conduit Connector
• Unspsc: 39121419
• UPC 12 Digit: 781381440110
• SKU Name: app 7388i
