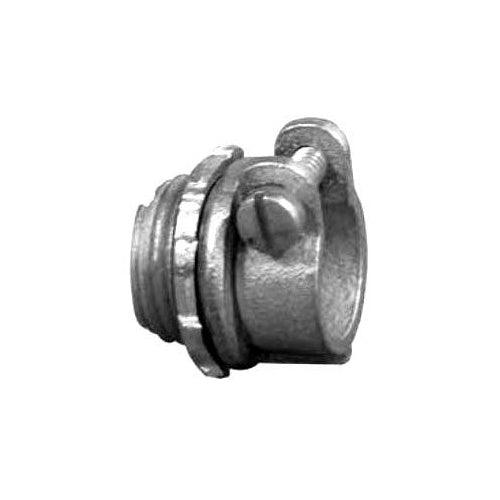

Appleton 7480VI 3/8 .531-.687 Insulated Connector

Overview

Appleton 7480VI 3/8 .531-.687 Insulated Connector

Product Specifications

• UPC: 78138140409
• Throat Type: Insulated
• Material: Electro Zinc Plated Malleable Iron
• Approval: UL 514B, CSA C22.2
• Additional Information: Used On Armored Cable/Flexible Metal Conduit; Applicable Standard NEMA FB-1
• Catalog Number: 7480VI
• Type: Straight
• Trade Size: 3/8 Inch
• Knockout Size: 1/2 Inch
• Cable Opening: Single
• Cable/Conduit Type: Armored Cable/Flexible Metal Conduit
• Cord Size: 0.31 to 0.63 Inch
• Length: 1.19 Inch
• Catalog Description: 90 DEG CONDUIT CONNECTOR, SIZE: 3/8 IN, CONNECTION: ARMORED CABLE X FLEXIBLE METAL CONDUIT, CONDUCTOR RANGE: 0.31 - 0.63 IN, MATERIAL: MALLEABLE IRON, FINISH: ZINC ELECTROPLATE, LENGTH: 3/4 IN, WIDTH: 1-1/4 IN, THREAD LENGTH: 0.44 IN, STAN
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Straight Type; Zinc Electroplated Malleable Iron Material; 1.28 Inch; UL 514B, CSA C22.2 Approval; 3/8 Inch Trade Size; 1/2 Inch Knockout Size; 0.53 to 0.69 Inch Cord Size; Insulated Throat Type; Armored Cable/Flexible Metal Conduit; Single Cable Opening; Application Commercial/Industrial; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Armored Cable/Flex Conduit Connector
• Unspsc: 39121419
• UPC 12 Digit: 781381404099
• SKU Name: app 7480vi
