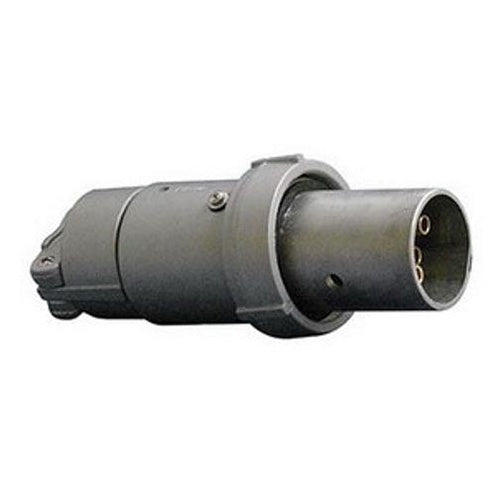

Appleton ACP1033CD 3W-3P Plug

Overview

Appleton ACP1033CD 3W-3P Plug

Product Specifications

• UPC: 78138144014
• Number Of Wires: 3
• Grounding Style: 1-Shell
• Minimum Cable Outer Diameter: 0.875 Inch
• Maximum Cable Outer Diameter: 1.906 Inch
• Material: Epoxy Powder Coated Copper-Free Aluminum
• Approval: UL, CSA
• Additional Information: Enclosure Type NEMA 3/3R/4/4X; Temperature Rating -40 to 225 Deg F; Applicable Standard NEC/CEC
• Catalog Number: ACP1033CD
• Brand Name: Powertite[TM]
• Model: ACP
• Type: Positive Polarized, Clamping Ring, Compressor, Motor Generator Unit, Pump, Welding
• Constructional Feature: Weatherproof, Rain Tight
• Voltage Rating: 600 Volt AC at 50 to 400 Hertz 3-Phase, 250 Volt DC
• Current Rating: 100 Amp
• Number Of Poles: 3
• Catalog Description: POWERTITE GROUNDING STYLE 1 CLAMPING RING PLUG, NUMBER OF POLES: 3, NUMBER OF WIRES: 3, WIRE SIZE: 4 - 1 AWG (BUILDING), 4 - 2 AWG (EXTRA FLEX), AMPERAGE RATING: 100 AMP, VOLTAGE RATING: 600 VAC AT 50 - 400 HZ, 250 VDC, PHASE: 3 PH, MAT
• Category: Pin & Sleeve Devices
• Full Technical Description: Compressor, Clamping Ring, Generator, Pump, Polarized, Welding Type; Epoxy Powder Coated Copper-Free Aluminum Material; 0.875 Inch min. Cable Outer Diameter; 1.906 Inch Max. Cable Outer Diameter; 3 Wire(S); 600 Volt AC 50/400 Hertz 3-Phase, 250 Volt DC Voltage Rating; 100 Amp Current Rating; 3 Pole(S); Weatherproof; 1, Shell Grounding Style; POWERTITE[TM] Brand; Power Rating 40 HP; Enclosure Rating NEMA 3/3R/4/4X; Temperature Rating -40 to 225 Deg F; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pin and Sleeve Plug
• Unspsc: 39121402
• UPC 12 Digit: 781381440141
• SKU Name: app acp1033cd
