Appleton acp3022bcrs

Overview

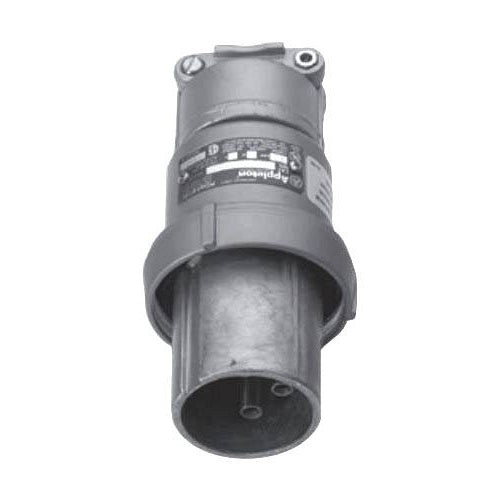

Appleton ACP3022BCRS 30A 2W2P Plug

Product Specifications

• Part Number: ACP3022BCRS
• UPC / GTIN: 78138171044
• UPC: 78138171044
• Grounding Style: 1, SHELL
• Minimum Cable Outer Diameter: 0.39 INCH
• Maximum Cable Outer Diameter: 1.375 INCH
• Material: EPOXY POWDER COATED COPPER FREE ALUMINUM
• Additional Information: APPLICATION COMPRESSOR, MOTOR GENERATOR UNIT, PUMP, SHIPPING DOCKS, SHIPPING PORTS, WELDING; CONTACT MATERIAL COPPER
• Brand Name: Powertite[R]
• Type: POLARIZED, REVERSE SERVICE, WITH CLAMPING RING
• Constructional Feature: WEATHER PROOF
• Voltage Rating: 600 VAC 1 PHASE AT 50 TO 400 HZ, 250 VDC
• Current Rating: 30 AMPERE
• Number of Poles: 2
• Number of Wires: 2
• CATALOG DESCRIPTION: PIN AND SLEEVE PLUG, TYPE REVERSE SERVICE, COMPRESSOR, GENERATOR, PUMP, WELDER, CLAMPING RING, CONSTRUCTIONAL FEATURE WEATHERPROOF, WATER RESISTANT, VOLTAGE RATING 600 VAC AT 50 TO 400 HZ, 250 VDC, CURRENT RATING 30 AMPERE, NUMBER OF POLES 2, NUMBER OF WIRES 2, GROUNDING STYLE 1, SHELL, MINIMUM CABLE OUTER DIAMETER 0.5 INCH, MAXIMUM CABLE OUTER DIAMETER 1.25 INCH, MATERIAL EPOXY POWDER COATED COPPER-FREE ALUMINUM, APPROVAL UL 1682/1689/50E, CSA C22.2, CONTACT MATERIAL BRASS, APPLICATION COMPRESSOR, GENERATOR UNIT, PUMP, SHIPPING DOCKS, SHIPPING PORTS, WELDING
• Full Technical Description: Compressor, Clamping Ring, Motor Generator Unit, Pump, Positive Polarization, Reverse Service, Welding Type; Epoxy Powder Coated Copper-Free Aluminum Material; 0.5 Inch min. Cable Outer Diameter; 1.125 Inch Max. Cable Outer Diameter; 2 Wire(S); UL 1682/1686/50E, CSA C22.2 Approval; 600 Volt AC 50/400 Hertz 3-Phase, 250 Volt DC Voltage Rating; 30 Amp Current Rating; 2 Pole(S); Weatherproof; 1, Shell Grounding Style; POWERTITE[TM] Brand; Wire Recess Diameter 0.281 Inch; Contact Material Brass; Finish Fiberglass Reinforced Polyester (Insulating Block); Enclosure Rating NEMA 3/4/4X; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Product Description: Appleton ACP3022BCRS 30A 2W2P Plug
• UNSPSC: 39121402
• UPC 12 Digit: 781381710442
