Appleton acp3034bcrs

Overview

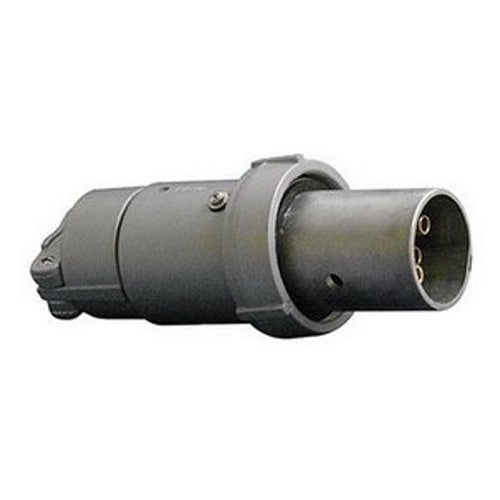

Powertite® ACP3034BCRS ACP 3-Phase Grounding Style 2 Clamping Ring Plug With Reverse Service, 250 V AC/600 V DC, 30 A, 4 Poles, 3 Wires, Metallic

Product Specifications

• Catalog Number: ACP3034BCRS
• UPC / GTIN: 781381710497
• Manufacturer Brand: Appleton®
• UNSPSC: 39121402
• Features: Shell and extra pole grounding style 2; Designed to supply power to portable or fixed electrical equipment; Insulating blocks provide greatest dielectric and mechanical strength and lowest arc tracking; Natural finish glass filled polyester insulating blocks; 9/32 in dia wire recess; Plug and receptacle combination is NEMA 4X rated when clamping ring is fully tightened on receptacle; Locking screw and slot prevents plug cable collar from "backing off"; Controlled length contacts ensure that ground makes first and breaks last for added safety; Contacts exert constant pressure along entire contact surface and provide electrical continuity; Neoprene bushing compressed by cable collar prevents entrance of water, bushing is highly resistant to hydrocarbon deterioration and is self extinguishing
• Amperage Rating: 30 A
• Color: Metallic
• Country of Origin: Mexico
• Dimensions: 6 in L x 3.13 in W
• Frequency Rating: 50/400 Hz
• Material: Copper Free Aluminum
• NEMA Rating: NEMA 3/3R/4/4X
• Number of Poles: 4
• Number of Wires: 3
• Series: ACP
• Temperature Rating: -40 to 225 deg F
• Terminal Type: Pressure Wire
• Type: 3-Phase Grounding Style 2
• Voltage Rating: 250 V AC/600 V DC | 250/600 VAC/VDC
