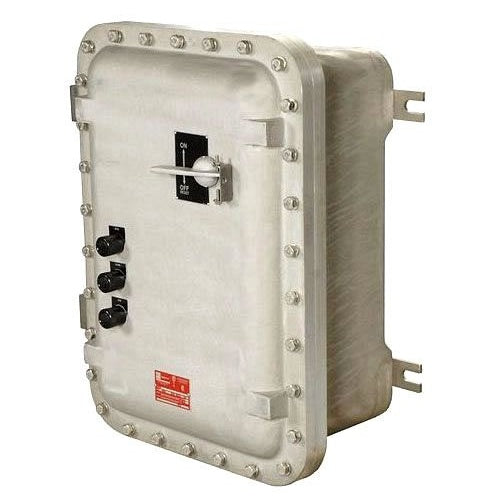

Appleton ACSEW061204 Explosion-Proof Watertight Control Center

Overview

Appleton ACSEW061204 Explosion-Proof Watertight Control Center

Product Specifications

• Catalog Description: EXPLOSIONPROOF CAST CONTROL CENTER, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, VOLTAGE RATING 600 VAC, CURRENT RATING 10 AMPERE, OPERATOR TYPE BUTTON, PILOT LIGHT TYPE 6 V TRANSFORMER, ENCLOSURE MATERIAL SHOT BLAST COPPER-FREE ALUMINUM, ENCLOSURE CLASS I DIV 1 AND 2 GROUP B C D, CLASS I ZONE 1 AND 2 GROUP IIA IIB, IP66, CLASS II, DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/7BCD/9EFG, APPROVAL UL 1203, CSA C22.2, INNER SIZE 12.13 INCH L X 6.13 INCH W X 4.06 INCH D, OVERALL SIZE 10.63 INCH W X 6.38 INCH D X 16.63 INCH H, COVER THICKNESS 0.63 INCH, WEIGHT 25 LB
• Category: Control Station Complete Assemblies
• Full Technical Description: Feet Mount Type; Shot Blast Sand Copper-Free Cast Aluminum Enclosure Material; UL 1203, CSA C22.2 Approval; 600 Volt AC Voltage Rating; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/7/9 Enclosure; 10 Amp Current Rating; Explosionproof, Dust Ignitionproof; Button Operator Type; 6 Volt AC Up to 600 Volt AC With Transformer Pilot Light Type; Ov
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pushbutton Switch and Pilot Light Control Station
• Unspsc: 39121331
• UPC 12 Digit: 781381847049
• SKU Name: app acsew061204
