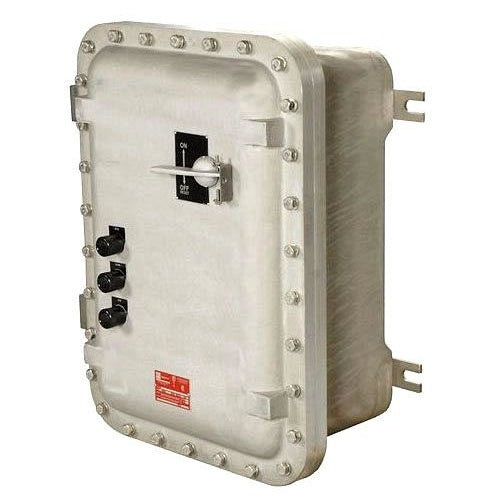

Appleton ACSEW071106 Explosion-Proof Watertight Control Center

Overview

Appleton ACSEW071106 Explosion-Proof Watertight Control Center

Product Specifications

• UPC: 78138184710
• Used On: ACSEW SERIES CAST CONTROL CENTER
• Approval: UL 886, CSA C22.2
• Additional Information: MAXIMUM NUMBER OF OPERATER 12
• Catalog Number: ACSEW071106
• Brand Name: Appleton[R]
• Model: ACSEW
• Hub Size: 2 INCH
• Material: COPPER FREE ALUMINUM
• Enclosure: CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/7B/7C/7D/9E/9F/9G
• Size: 12.25 INCH W X 10 INCH D X 15.88 INCH H
• Mounting: FEET
• Catalog Description: EXPLOSIONPROOF CAST CONTROL CENTER, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, VOLTAGE RATING 600 VAC, CURRENT RATING 10 AMPERE, OPERATOR TYPE BUTTON, PILOT LIGHT TYPE 6 V TRANSFORMER, ENCLOSURE MATERIAL SHOT BLAST COPPER-FREE ALUMINUM, ENCLOSURE CLASS I DIV 1 AND 2 GROUP B C D, CLASS I ZONE 1 AND 2 GROUP IIA IIB, IP66, CLASS II, DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/7BCD/9EFG, APPROVAL UL 1203, CSA C22.2, INNER SIZE 11.38 INCH L X 7.38 INCH W X 5.88 INCH D, OVERALL SIZE 12.25 INCH W X 10 INCH D X 15.88 INCH H, COVER THICKNESS 0.75 INCH, WEIGHT 35 LB
• Category: Control Station Complete Assemblies
• Full Technical Description: Feet Mount Type; Shot Blast Sand Copper-Free Cast Aluminum Enclosure Material; UL 1203, CSA C22.2 Approval; 600 Volt AC Voltage Rating; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/7/9 Enclosure; 10 Amp Current Rating; Explosionproof, Dust Ignitionproof; Button Operator Type; 6 Volt AC Up to 600 Volt AC With Transformer Pilot Light Type; Overall Dimension 12.25 Inch Width X 10 Inch Depth X 15.88 Inch Height; Inner Size 11.38 Inch Length X 7.38 Inch Width X 5.88 Inch Depth; Thread Size 3/4 Inch-14 TPI; Cover Thickness 0.75 Inch; Number of Operators 12; Material Stainless Steel (Cover Bolt/Mounting Feet), Neoprene
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pushbutton Switch and Pilot Light Control Station
• Unspsc: 39121331
• UPC 12 Digit: 781381847100
• SKU Name: app acsew071106

Resources

• Manufacturer Spec Sheet
