Appleton ACSEW243008 Enclosed Pushbutton Control Center

Overview

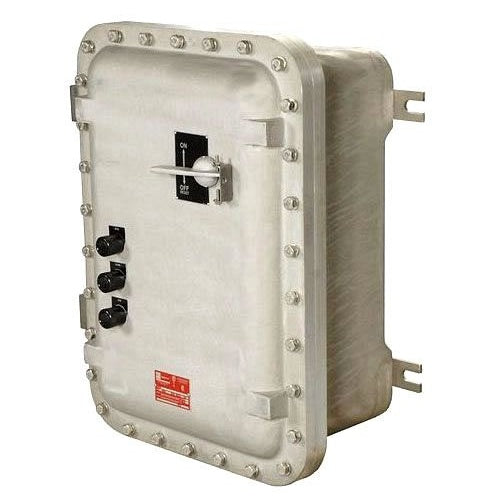

Appleton ACSEW243008 Enclosed Pushbutton Control Center

Product Specifications

• Catalog Description: EXPLOSIONPROOF CAST CONTROL CENTER, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, VOLTAGE RATING 600 VAC, CURRENT RATING 10 AMPERE, OPERATOR TYPE BUTTON, PILOT LIGHT TYPE 6 V TRANSFORMER, ENCLOSURE MATERIAL SHOT BLAST COPPER-FREE ALUMINUM, ENCLOSURE CLASS I DIV 1 AND 2 GROUP B C D, CLASS I ZONE 1 AND 2 GROUP IIA IIB, IP66, CLASS II, DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/7BCD/9EFG, APPROVAL UL 1203, CSA C22.2, INNER SIZE 30 INCH L X 24 INCH W X 8 INCH D, OVERALL SIZE 29 INCH W X 13 INCH D X 35 INCH H, COVER THICKNESS 1.13 INCH, WEIGHT 420 LB
• Category: Control Station Complete Assemblies
• Full Technical Description: Feet Mount Type; Shot Blast Sand Copper-Free Cast Aluminum Enclosure Material; UL 1203, CSA C22.2 Approval; 600 Volt AC Voltage Rating; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/7/9 Enclosure; 10 Amp Current Rating; Explosionproof, Dust Ignitionproof; Button Operator Type; 6 Volt AC Up to 600 Volt AC With Transformer Pilot Light Type; Overall Dimension 29 Inch Width X
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pushbutton Switch and Pilot Light Control Station
• Unspsc: 39121331
• UPC 12 Digit: 781381924597
• SKU Name: app acsew243008

Resources

• Manufacturer Spec Sheet
