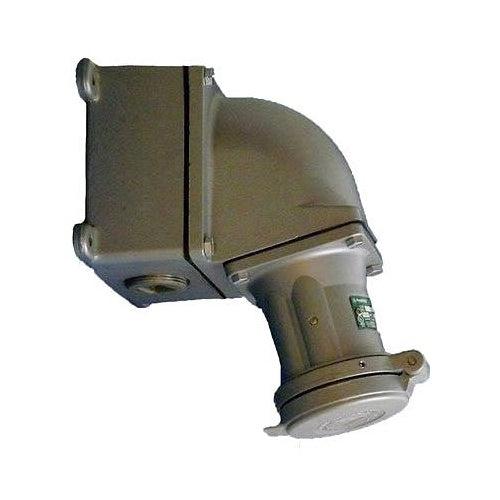

Appleton ADJA1023-150 2W-3P Receptacle

Overview

Appleton ADJA1023-150 2W-3P Receptacle

Product Specifications

• UPC: 78138115718
• Grounding Style: 2, Shell, Extra Pole
• Door Type: Spring Door
• Hub Type: 1-1/2 Inch
• Material: Epoxy Powder Coated Copper Free Aluminum
• Additional Information: Application Compressor, Motor Generator Unit, Pump, Shipping Docks, Shipping Ports, Welding; Contact Material Copper
• Catalog Number: ADJA1023-150
• Brand Name: Powertite[R]
• Type: Polarized
• Constructional Feature: Weatherproof
• Voltage Rating: 600 VAC 1-Phase at 50 to 400 Hz, 250 VDC
• Current Rating: 100 Ampere
• Number Of Poles: 3
• Number Of Wires: 2
• Catalog Description: POWERTITE GROUNDING STYLE 2 RECEPTACLE WITH AJA MOUNTING BOX, NUMBER OF POLES: 3, NUMBER OF WIRES: 2, WIRE SIZE: 4 - 1 AWG (BUILDING), 4 - 2 AWG (EXTRA FLEX), AMPERAGE RATING: 100 AMP, VOLTAGE RATING: 600 VAC AT 50 - 400 HZ, 250 VDC,
• Category: Pin & Sleeve Devices
• Full Technical Description: Positive Polarization Type; Epoxy Powder Coated Copper-Free Aluminum Material; 2 Wire(S); 600 Volt AC 50/400 Hertz 1-Phase, 250 Volt DC Voltage Rating; 100 Amp Current Rating; 3 Pole(S); Weatherproof, Rain Tight; 1-1/2 Inch Hub Type; Spring; Shell, Extra Pole, 2 Grounding Style; POWERTITE[TM] Brand; Wire Size 4 to 1 AWG (Building), 4 to 2 AWG (Extra Flexible); Wire Recess Diameter 0.391 Inch; Contact Material Copper; Insulating Block Material Glass Filled Polyester; Enclosure Rating NEMA 3/4/4X/Fb-1; Ambient Temperature Rating -13 to 104 Deg F; Includes Aja Mounting Box; Application Motor Generator Unit, Welder, Pump, Compressor and Cellular Relay Station; Approval UL 1682/1686/50E, CSA C22.2; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pin and Sleeve Receptacle Box Assembly
• Unspsc: 39121406
• UPC 12 Digit: 781381157186
• SKU Name: app adja1023150
