Appleton adja1034150rs

Overview

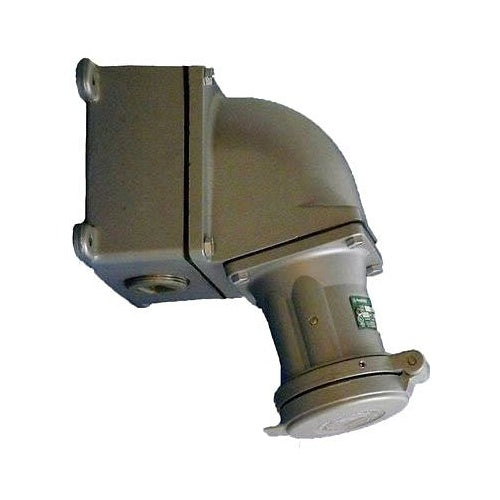

Powertite® ADJA1034-150-RS 3-Phase Grounding Style 2 Reverse Service Pin and Sleeve Receptacle With AJA Mounting Box, 600 V AC/250 V DC, 100 A, 4 Poles, 3 Wires

Product Specifications

• Catalog Number: ADJA1034150RS
• UPC / GTIN: 781381711340
• Manufacturer Brand: Appleton®
• UNSPSC: 39121406
• Features: Shell and extra pole grounding style 2; Natural finish glass filled polyester insulating blocks; 0.391 in dia wire recess; Designed to supply power to portable or fixed electrical equipment; Suitable for use in locations where a weatherproof enclosure is required; Weatherproof spring door, brass with beryllium copper springs
• Amperage Rating: 100 A
• Cord Diameter: 0.875 to 1.906 in
• Country of Origin: Mexico
• Dimensions: 11.44 in H x 7.88 in W x 9 in D
• Frequency Rating: 50 to 400 Hz
• Horsepower: 40 hp
• Hub Size: 1-1/2 in
• Material: Copper Free Aluminum
• NEMA Rating: NEMA 3/3R/4/4X
• Number of Poles: 4
• Number of Wires: 3
• Temperature Rating: -40 to 225 deg F
• Terminal Type: Pressure Wire
• Type: 3-Phase Grounding Style 2 Reverse Service
• Voltage Rating: 600 V AC/250 V DC | 600/250 VAC/VDC
