Appleton adja1034200rs

Overview

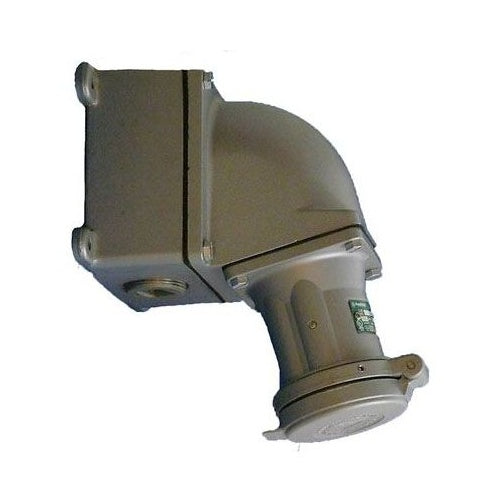

Appleton ADJA1034200RS 100A Receptacle & Back Box

Product Specifications

• Part Number: ADJA1034200RS
• UPC / GTIN: 78138171136
• UPC: 78138171136
• Grounding Style: 2, Shell, Extra Pole
• Door Type: Spring Door
• Hub Type: 2 Inch
• Material: Epoxy Powder Coated Copper Free Aluminum
• Additional Information: Application Compressor, Motor Generator Unit, Pump, Shipping Docks, Shipping Ports, Welding; Contact Material Copper
• Brand Name: Powertite[R]
• Type: Polarized, Reverse Service
• Constructional Feature: Weatherproof
• Voltage Rating: 600 VAC 3-Phase at 50 to 400 Hz, 250 VDC
• Current Rating: 100 Ampere
• Number of Poles: 4
• Number of Wires: 3
• CATALOG DESCRIPTION: POWERTITE GROUNDING STYLE 2 RECEPTACLE WITH AJA MOUNTING BOX, NUMBER OF POLES: 4, NUMBER OF WIRES: 3, WIRE SIZE: 4 - 1 AWG (BUILDING), 4 - 2 AWG (EXTRA FLEX), AMPERAGE RATING: 100 AMP, VOLTAGE RATING: 600 VAC AT 50 - 400 HZ, 250 VDC
• Full Technical Description: Positive Polarization, Reverse Service Type; Epoxy Powder Coated Copper-Free Aluminum Material; 3 Wire(S); 600 Volt AC 50/400 Hertz 3-Phase, 250 Volt DC Voltage Rating; 100 Amp Current Rating; 4 Pole(S); Weatherproof, Rain Tight; 2 Inch Hub Type; Spring; Shell, Extra Pole, 2 Grounding Style; POWERTITE[TM] Brand; Wire Size 4 to 1 AWG (Building), 4 to 2 AWG (Extra Flexible); Wire Recess Diameter 0.391 Inch; Contact Material Copper; Insulating Block Material Glass Filled Polyester; Enclosure Rating NEMA 3/4/4X/Fb-1; Ambient Temperature Rating -13 to 104 Deg F; Includes Aja Mounting Box; Application Motor Generator Unit, Welder, Pump, Compressor and Cellular Relay Station; Approval UL 1682/1686/50E, CSA C22.2; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Product Description: Appleton ADJA1034200RS 100A Receptacle & Back Box
• UNSPSC: 39121406
• UPC 12 Digit: 781381711364
