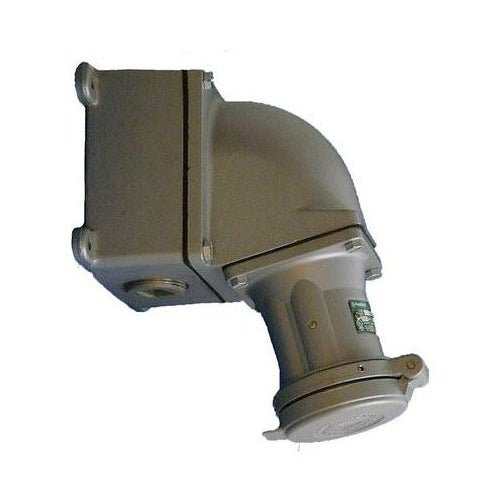

Appleton ADJA1044-200 4W-4P Receptacle

Overview

Appleton ADJA1044-200 4W-4P Receptacle

Product Specifications

• UPC: 78138115726
• Number Of Wires: 4
• Grounding Style: 1, Shell
• Door Type: Spring Door
• Hub Type: 2 Inch
• Material: Epoxy Powder Coated Copper-Free Aluminum
• Additional Information: Application Compressor, Motor Generator Unit, Pump, Shipping Dock, Shipping Port, Welding; Contact Material Copper
• Catalog Number: ADJA1044-200
• Brand Name: Appleton
• Model: ADJA
• Type: Polarized
• Constructional Feature: Weatherproof
• Voltage Rating: 600 Volt AC 3-Phase at 50 to 400 Hertz, 250 Volt DC
• Current Rating: 100 Amp
• Number Of Poles: 4
• Catalog Description: POWERTITE GROUNDING STYLE 1 RECEPTACLE WITH AJA MOUNTING BOX, NUMBER OF POLES: 4, NUMBER OF WIRES: 4, WIRE SIZE: 4 - 1 AWG (BUILDING), 4 - 2 AWG (EXTRA FLEX), AMPERAGE RATING: 100 AMP, VOLTAGE RATING: 600 VAC AT 50 - 400 HZ, 250 VDC,
• Category: Pin & Sleeve Devices
• Full Technical Description: Positive Polarization Type; Epoxy Powder Coated Copper-Free Aluminum Material; 4 Wire(S); 600 Volt AC 50/400 Hertz 3-Phase, 250 Volt DC Voltage Rating; 100 Amp Current Rating; 4 Pole(S); Weatherproof, Rain Tight; 2 Inch Hub Type; Spring; 1, Shell Grounding Style; POWERTITE[TM] Brand; Wire Size 4 to 1 AWG (Building), 4 to 2 AWG (Extra Flexible); Wire Recess Diameter 0.391 Inch; Contact Material Copper; Insulating Block Material Glass Filled Polyester; Enclosure Rating NEMA 3/4/4X/Fb-1; Ambient Temperature Rating -13 to 104 Deg F; Includes Aja Mounting Box; Application Motor Generator Unit, Welder, Pump, Compressor and Cellular Relay Station; Approval UL 1682/1686/50E, CSA C22.2; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pin and Sleeve Receptacle Box Assembly
• Unspsc: 39121406
• UPC 12 Digit: 781381157261
• SKU Name: app adja1044200
