Appleton adja20023150rs

Overview

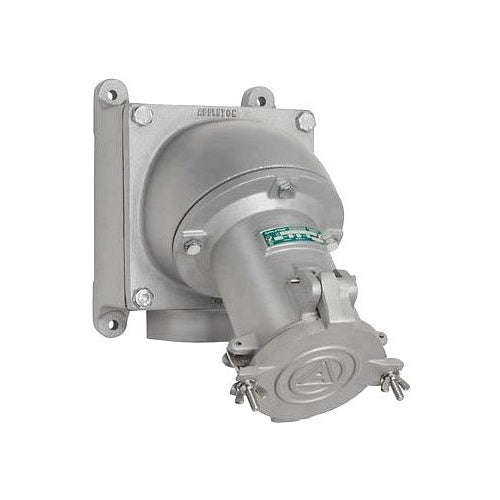

Appleton ADJA20023150RS 200A Receptacle & Back Box

Product Specifications

• Part Number: ADJA20023150RS
• UPC / GTIN: 78138171182
• UPC: 78138171182
• Grounding Style: 2, SHELL, EXTRA POLE
• Door Type: SPRING DOOR
• Hub Type: 1-1/2 INCH
• Material: EPOXY POWDER COATED COPPER FREE ALUMINUM
• Additional Information: APPLICATION COMPRESSOR, MOTOR GENERATOR UNIT, PUMP, SHIPPING DOCKS, SHIPPING PORTS, WELDING; CONTACT MATERIAL COPPER
• Brand Name: Powertite[T]
• Type: POLARIZED, REVERSE SERVICE
• Constructional Feature: WEATHER PROOF
• Voltage Rating: 600 VAC 1 PHASE AT 50 TO 400 HZ/250 VDC
• Current Rating: 200 AMPERE
• Number of Poles: 3
• Number of Wires: 2
• CATALOG DESCRIPTION: POWERTITE GROUNDING STYLE 2 RECEPTACLE WITH AJA MOUNTING BOX, NUMBER OF POLES: 3, NUMBER OF WIRES: 2, WIRE SIZE: 2/0 AWG - 250 MCM, AMPERAGE RATING: 200 AMP, VOLTAGE RATING: 600 VAC AT 50 - 400 HZ, 250 VDC, PHASE: 1 PH, MATERIAL: C
• Full Technical Description: Positive Polarization, Reverse Service Type; Epoxy Powder Coated Copper-Free Aluminum Material; 2 Wire(S); 600 Volt AC 50/400 Hertz 1-Phase, 250 Volt DC Voltage Rating; 200 Amp Current Rating; 2 Pole(S); Weatherproof; 1-1/2 Inch Hub Type; Spring; Shell, Extra Pole, 2 Grounding Style; POWERTITE[TM] Brand; Wire Size 250 MCM to 1/0 AWG; Wire Recess Diameter 0.687 Inch; Contact Material Copper; Insulating Block Material Glass Filled Polyester; Enclosure Rating NEMA 3/4/4X/Fb-11; Ambient Temperature Rating -13 to 104 Deg F; Includes Aja Mounting Box; Application Motor Generator Unit, Welder, Pump, Compressor and Cellular Relay Station; Approval UL 1682/1686/50E, CSA C22.2; Applicable Standard NEMA Nec/Cec
• Manufacturer: Appleton Electric
• Product Description: Appleton ADJA20023150RS 200A Receptacle & Back Box
• UNSPSC: 39121406
• UPC 12 Digit: 781381711821
