Appleton adja20023200

Overview

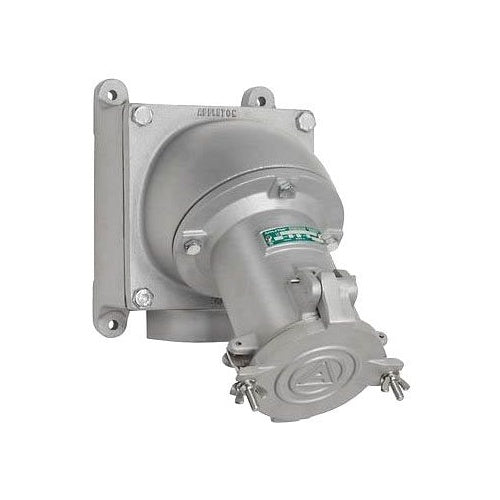

Powertite® ADJA20023-200 1-Phase Grounding Style 2 Pin and Sleeve Receptacle With AJA Mounting Box, 600 V AC/250 V DC, 200 A, 3 Poles, 2 Wires

Product Specifications

• Catalog Number: ADJA20023200
• UPC / GTIN: 781381612579
• Manufacturer Brand: Appleton®
• UNSPSC: 39121406
• Features: Shell and extra pole grounding style 2; Natural finish glass filled polyester insulating blocks; 11/16 in dia wire recess; Designed to supply power to portable or fixed electrical equipment; Suitable for use in locations where a weatherproof enclosure is required; Weatherproof spring door, raintight clamp cover
• Amperage Rating: 200 A
• Cord Diameter: 1.875 to 2.5 in
• Country of Origin: Mexico
• Dimensions: 13-1/2 in H x 8 in W x 14-1/4 in D
• Frequency Rating: 50 to 400 Hz
• Horsepower: 40 hp
• Hub Size: 2 in
• Material: Copper Free Aluminum
• NEMA Rating: NEMA 3/3R/4/4X
• Number of Poles: 3
• Number of Wires: 2
• Temperature Rating: -40 to 225 deg F
• Terminal Type: Pressure Wire
• Type: 1-Phase Grounding Style 2
• Voltage Rating: 600 V AC/250 V DC | 600/250 VAC/VDC
