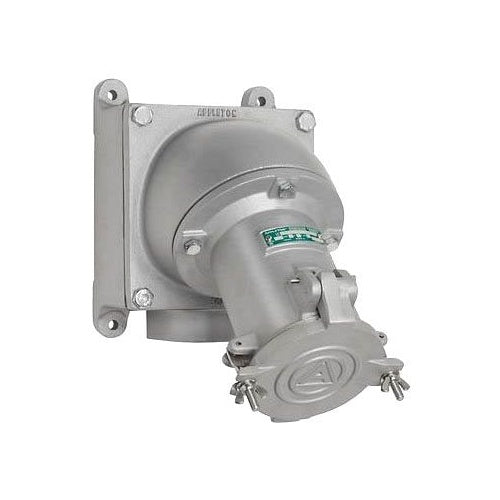

Appleton ADJA20044200P4 200A Receptacle&Unilet

Overview

Appleton ADJA20044200P4 200A Receptacle&Unilet

Product Specifications

• Catalog Description: PIN AND SLEEVE RECEPTACLE BOX ASSEMBLY, TYPE POLARIZED, ANGLED, CONSTRUCTIONAL FEATURE WEATHERPROOF, RAINTIGHT, VOLTAGE RATING 600 VAC AT 50 TO 400 HZ, 250 VDC, CURRENT RATING 200 AMPERE, NUMBER OF POLES 4, NUMBER OF WIRES 4, GROUNDING STYLE 1, SHELL, DOOR TYPE SPRING DOOR, HUB TYPE 2 INCH, MATERIAL EPOXY POWDER COATED COPPER-FREE ALUMINUM, INSULATING BLOCK MATERIAL, GLASS FILLED POLYESTER, APPLICATION COMPRESSOR, MOTOR GENERATOR UNIT, PUMP, SHIPPING DOCKS, SHIPPING PORTS, WELDING, TEMPERATURE RATING -40 TO 107 DEG C
• Category: Pin & Sleeve Devices
• Full Technical Description: Special Polarization Type; Epoxy Powder Coated Copper-Free Aluminum Material; 4 Wire(S); 600 Volt AC 50/400 Hertz 3-Phase, 250 Volt DC Voltage Rating; 200 Amp Current Rating; 4 Pole(S); Weatherproof; 2 Inch Hub Type; Spring; 1, Shell Grounding Style; POWERTITE[TM] Brand; Wire Size 250 MCM to 1/0 AWG; Wire Recess Diameter 0.687 Inch; Contact Material Copper; Insulating Block Material Glass Filled Polyester; Enclosure Rating NEMA 3/4/4X/Fb-11; Ambient Temperature Rating -13 to 104 Deg F; Includes Aja Mounting Box; Application Mot
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pin and Sleeve Receptacle Box Assembly
• Unspsc: 39121406
• UPC 12 Digit: 781381255349
• SKU Name: app adja20044200p4

Resources

• Manufacturer Spec Sheet
