Appleton adja20044250rs

Overview

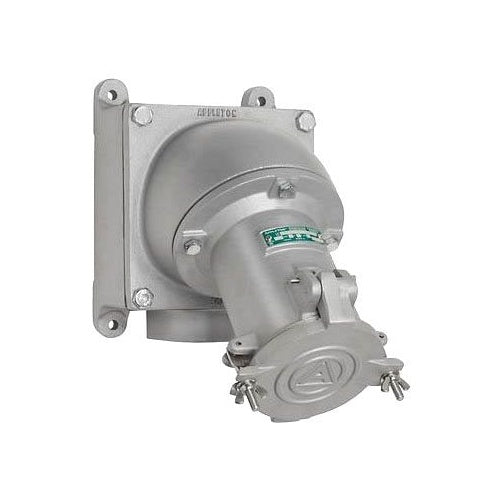

Appleton ADJA20044250RS 200A Receptacle&Bx

Product Specifications

• Part Number: ADJA20044250RS
• UPC / GTIN: 78138171181
• UPC: 78138171181
• Grounding Style: 1, Shell
• Door Type: Spring Door
• Hub Type: 2-1/2 Inch
• Material: Epoxy Powder Coated Copper Free Aluminum
• Additional Information: Application Compressor, Motor Generator Unit, Pump, Shipping Docks, Shipping Ports, Welding; Contact Material Copper
• Brand Name: Powertite[R]
• Type: Polarized, Reverse Service
• Constructional Feature: Weatherproof
• Voltage Rating: 600 VAC 3-Phase at 50 to 400 Hz, 250 VDC
• Current Rating: 200 Ampere
• Number of Poles: 4
• Number of Wires: 4
• CATALOG DESCRIPTION: APPLETON POWERTITE GROUNDING STYLE 1 RECEPTACLE WITH AJA MOUNTING BOX, NUMBER OF POLES: 4, NUMBER OF WIRES: 4, WIRE SIZE: 2/0 AWG - 250 MCM, AMPERAGE RATING: 200 AMP, VOLTAGE RATING: 600 VAC AT 50 - 400 HZ, 250 VDC, PHASE: 3 PH, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALUMINUM, NEMA RATING: NEMA 3, 3R, 4, 4X, MOUNTING: SURFACE MOUNT WITH 2-1/2 IN HUB, CONNECTION: PRESSURE WIRE TERMINAL, TEMPERATURE RATING: -40 TO 107 DEG C, MOTOR HORSEPOWER: 50 HP AT 600 VAC, FINISH: EPOXY POWDER COAT, DIMENSIONS: 8 IN WIDTH X 13.50 IN HEIGHT X 14-1/4 IN DEPTH, STANDARD: UL 1682, UL 1686, UL 50E, UL LISTED: E145916, E145917, CSA STANDARD: C22.2 NO. 182.1, CSA CERTIFIED: 065179, NEMA FB11, FOR AP20044E PLUG
• Full Technical Description: Positive Polarization, Reverse Service Type; Epoxy Powder Coated Copper-Free Aluminum Material; 4 Wire(S); 600 Volt AC 50/400 Hertz 3-Phase, 250 Volt DC Voltage Rating; 200 Amp Current Rating; 4 Pole(S); Weatherproof; 2-1/2 Inch Hub Type; Spring; 1, Shell Grounding Style; POWERTITE[TM] Brand; Wire Size 250 MCM to 1/0 AWG; Wire Recess Diameter 0.687 Inch; Contact Material Copper; Insulating Block Material Glass Filled Polyester; Enclosure Rating NEMA 3/4/4X/Fb-11; Ambient Temperature Rating -13 to 104 Deg F; Includes Aja Mounting Box; Application Motor Generator Unit, Wel
• Manufacturer: Appleton Electric
• Product Description: Appleton ADJA20044250RS 200A Receptacle&Bx
• UNSPSC: 39121406
• UPC 12 Digit: 781381711814
