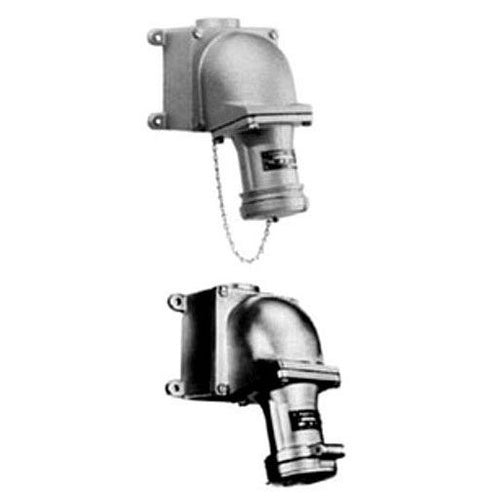

Appleton ADJA6033-100 3W-3P Receptacle

Overview

Appleton ADJA6033-100 3W-3P Receptacle

Product Specifications

• UPC: 78138115732
• Grounding Style: 1, SHELL
• Door Type: SPRING DOOR
• Hub Type: 1 INCH
• Material: EPOXY POWDER COATED COPPER FREE ALUMINUM
• Additional Information: APPLICATION COMPRESSOR, MOTOR GENERATOR UNIT, PUMP, SHIPPING DOCKS, SHIPPING PORTS, WELDING; CONTACT MATERIAL COPPER
• Catalog Number: ADJA6033-100
• Brand Name: Powertite.
• Type: POLARIZED
• Constructional Feature: WEATHER PROOF
• Voltage Rating: 600 VAC 3 PHASE AT 50 TO 400 HZ/250 VDC
• Current Rating: 60 AMPERE
• Number Of Poles: 3
• Number Of Wires: 3
• Catalog Description: POWERTITE GROUNDING STYLE 1 RECEPTACLE WITH AJA MOUNTING BOX, NUMBER OF POLES: 3, NUMBER OF WIRES: 3, WIRE SIZE: 6 - 2 AWG (BUILDING), 6 - 4 AWG (EXTRA FLEX), AMPERAGE RATING: 60 AMP, VOLTAGE RATING: 600 VAC AT 50 - 400 HZ, 250 VDC,
• Category: Pin & Sleeve Devices
• Full Size Image: ht
• Full Technical Description: Positive Polarization Type; Epoxy Powder Coated Copper-Free Aluminum Material; 3 Wire(S); 600 Volt AC 50/400 Hertz 1-Phase, 250 Volt DC Voltage Rating; 60 Amp Current Rating; 3 Pole(S); Weatherproof, Rain Tight; 1 Inch Hub Type; Spring; 1, Shell Grounding Style; POWERTITE[TM] Brand; Wire Size 6 to 2 AWG (Building), 6 to 4 AWG (Extra Flexible); Wire Recess Diameter 0.312 Inch; Contact Material Copper; Insulating Block Material Glass Filled Polyester; Enclosure Rating NEMA 3/4/4X/Fb-11; Ambient Temperature Rating -13 to 104 Deg F; Includes Aja Mounting Box; Application Motor Generator Unit, Welder, Pump, Compressor and Cellular Relay Station; Approval UL 1682/1686/50E, CSA C22.2; Applicable Standard NEMA Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pin and Sleeve Receptacle Box Assembly
• Unspsc: 39121406
• UPC 12 Digit: 781381157322
• SKU Name: app adja6033100
