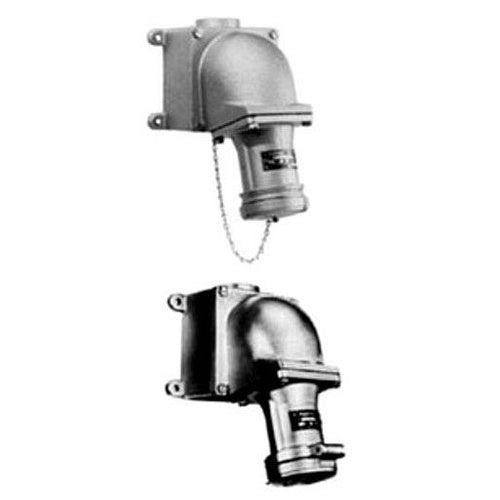

Appleton ADJA6034-150 3W-4P Receptacle

Overview

Appleton ADJA6034-150 3W-4P Receptacle

Product Specifications

• UPC: 78138115736
• Grounding Style: 2, SHELL, EXTRA POLE
• Door Type: SPRING DOOR
• Hub Type: 1-1/2 INCH
• Material: EPOXY POWDER COATED COPPER FREE ALUMINUM
• Additional Information: APPLICATION COMPRESSOR, MOTOR GENERATOR UNIT, PUMP, SHIPPING DOCKS, SHIPPING PORTS, WELDING; CONTACT MATERIAL COPPER
• Catalog Number: ADJA6034-150
• Brand Name: Powertite.
• Type: POLARIZED
• Constructional Feature: WEATHER PROOF
• Voltage Rating: 600 VAC 3 PHASE AT 50 TO 400 HZ/250 VDC
• Current Rating: 60 AMPERE
• Number Of Poles: 4
• Number Of Wires: 3
• Catalog Description: APPLETON POWERTITE GROUNDING STYLE 2 RECEPTACLE WITH AJA MOUNTING BOX, NUMBER OF POLES: 4, NUMBER OF WIRES: 3, WIRE SIZE: 6 - 2 AWG (BUILDING), 6 - 4 AWG (EXTRA FLEX), AMPERAGE RATING: 60 AMP, VOLTAGE RATING: 600 VAC AT 50 - 400 HZ, 250 VDC, PHASE: 3 PH, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALUMINUM, NEMA RATING: NEMA 3, 3R, 4, 4X, MOUNTING: SURFACE MOUNT WITH 1-1/2 IN HUB, CONNECTION: PRESSURE WIRE TERMINAL, TEMPERATURE RATING: -40 TO 107 DEG C, MOTOR HORSEPOWER: 30 HP AT 600 VAC, FINISH: EPOXY POWDER COAT, DIMENSIONS: 7.88 IN WIDTH X 9.63 IN HEIGHT X 8 IN DEPTH, STANDARD: UL 1682, UL 1686, UL 50E, UL LISTED: E145916, E145917, CSA STANDARD: C22.2 NO. 182.1, CSA CERTIFIED: 065179, NEMA FB11, FOR ACP6034BC METALLIC AND NMACP6034BC NONMETALLIC CLAMPING RING PLUGS
• Category: Pin & Sleeve Devices
• Full Technical Description: Positive Polarization Type; Epoxy Powder Coated Copper-Free Aluminum Material; 3 Wire(S); 600 Volt AC 50/400 Hertz 3-Phase, 250 Volt DC Voltage Rating; 60 Amp Current Rating; 4 Pole(S); Weatherproof, Rain Tight; 1-1/2 Inch Hub Type; Spring; Shell, Extra Pole, 2 Grounding Style; POWERTITE[TM] Brand; Wire Size 6 to 2 AWG (Building), 6 to 4 AWG (Extra Flexible); Wire Recess Diameter 0.312 Inch; Contact Material Copper; Insulating Block Material Glass Filled Polyester; Enclosure Rating NEMA 3/4/4X/Fb-11; Ambie
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pin and Sleeve Receptacle Box Assembly
• Unspsc: 39121406
• UPC 12 Digit: 781381157360
• SKU Name: app adja6034150
