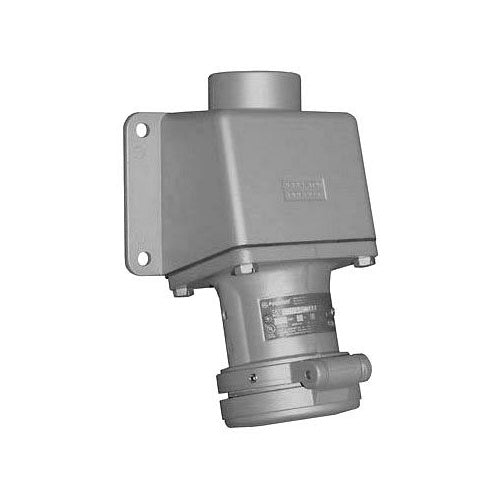

Appleton ADRE6022-125 2W-2P Receptacle

Overview

Appleton ADRE6022-125 2W-2P Receptacle

Product Specifications

• UPC: 78138115858
• Grounding Style: 1, Shell
• Door Type: Spring Door
• Hub Type: 1-1/4 Inch
• Material: Epoxy Powder Coated Copper Free Aluminum
• Additional Information: Application Compressor, Motor Generator Unit, Pump, Shipping Docks, Shipping Ports, Welding; Contact Material Copper
• Catalog Number: ADRE6022-125
• Brand Name: Powertite[R]
• Type: Polarized
• Constructional Feature: Weatherproof
• Voltage Rating: 600 VAC 1-Phase at 50 to 400 Hz, 250 VDC
• Current Rating: 60 Ampere
• Number Of Poles: 2
• Number Of Wires: 2
• Catalog Description: PIN AND SLEEVE RECEPTACLE BOX ASSEMBLY, TYPE POLARIZED, CONSTRUCTIONAL FEATURE WEATHERPROOF, RAINTIGHT, VOLTAGE RATING 600 VAC AT 50 TO 400 HZ, 250 VDC, CURRENT RATING 60 AMPERE, NUMBER OF POLES 2, NUMBER OF WIRES 2, GROUNDING STYLE 1, SHELL, DOOR TYPE SPRING DOOR, SCREW CAP, HUB TYPE 1-1/4 INCH, MATERIAL EPOXY POWDER COATED COPPER-FREE ALUMINUM, INSULATING BLOCK MATERIAL, GLASS FILLED POLYESTER, APPLICATION COMPRESSOR, MOTOR GENERATOR UNIT, PUMP, SHIPPING DOCKS, SHIPPING PORTS, WELDING, TEMPERATURE RATING -40 TO 107 DEG C
• Category: Pin & Sleeve Devices
• Full Technical Description: Positive Polarization Type; Epoxy Powder Coated Copper-Free Aluminum Material; 2 Wire(S); 600 Volt AC 50/400 Hertz 1-Phase, 250 Volt DC Voltage Rating; 60 Amp Current Rating; 2 Pole(S); Weatherproof, Rain Tight; 1-1/4 Inch Hub Type; Spring; 1, Shell Grounding Style; POWERTITE[TM] Brand; Wire Size 10 to 6 AWG (Building), 10 to 8 AWG (Extra Flexible); Wire Recess Diameter 0.281 Inch; Contact Material Copper; Insulating Block Material Glass Filled Polyester; Enclosure Rating NEMA 3/4/4X/Fb-11; Ambient Temperature Rating -13 to 104 Deg F; Includes Aee Mounting Box; Application Motor Generator Unit, Welder, Pump, Compressor and Cellular Relay Station; Approval UL 1682/1686/50E, CSA C22.2; Applicable Standard NEMA Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pin and Sleeve Receptacle Box Assembly
• Unspsc: 39121406
• UPC 12 Digit: 781381158589
• SKU Name: app adre6022125

Resources

• Manufacturer Spec Sheet
