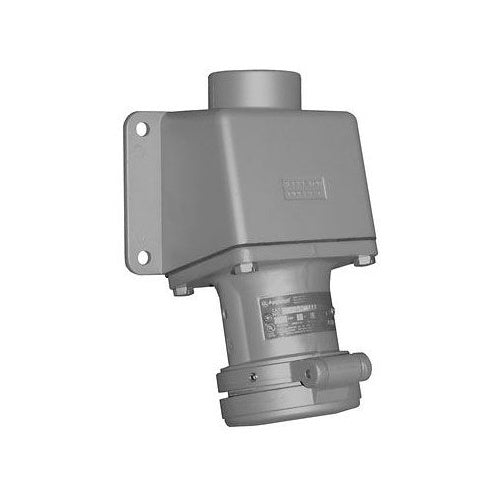

Appleton ADRE6034-125 3W-4P Receptacle

Overview

Appleton ADRE6034-125 3W-4P Receptacle

Product Specifications

• UPC: 78138115864
• Grounding Style: 2-Shell, Extra Pole to Plug Housing
• Door Type: Spring Door
• Material: Copper Free Aluminum (Housing)
• Additional Information: Hub Size 1-1/4 Inch; Cable Diameter 0.5 to 1.25 Inch; NEMA Rating 3/3R/4/4X; Application Compressor, Motor Generator Unit, Pump, Shipping Docks, Shipping Ports, Welding; Applicable Standard UL, CSA, CSA C22.2, NEC/CEC Compliance
• Catalog Number: ADRE6034-125
• Brand Name: POWERTITE[TM]
• Type: Polarized
• Constructional Feature: Weatherproof
• Voltage Rating: 600 Volt AC 50 to 400 Hertz 3-Phase, 250 Volt DC
• Current Rating: 60 Amp
• Number Of Poles: 4
• Number Of Wires: 3
• Catalog Description: POWERTITE GROUNDING STYLE 2 RECEPTACLE WITH AEE MOUNTING BOX, NUMBER OF POLES: 4, NUMBER OF WIRES: 3, WIRE SIZE: 6 - 2 AWG (BUILDING), 6 - 4 AWG (EXTRA FLEX), AMPERAGE RATING: 60 AMP, VOLTAGE RATING: 600 VAC AT 50 - 400 HZ, 250 VDC,
• Category: Pin & Sleeve Devices
• Full Technical Description: Positive Polarization Type; Epoxy Powder Coated Copper-Free Aluminum Material; 3 Wire(S); 600 Volt AC 50/400 Hertz 3-Phase, 250 Volt DC Voltage Rating; 60 Amp Current Rating; 4 Pole(S); Weatherproof, Rain Tight; 1-1/4 Inch Hub Type; Spring; Shell, Extra Pole, 2 Grounding Style; POWERTITE[TM] Brand; Wire Size 6 to 2 AWG (Building), 6 to 4 AWG (Extra Flexible); Wire Recess Diameter 0.312 Inch; Contact Material Copper; Insulating Block Material Glass Filled Polyester; Enclosure Rating NEMA 3/4/4X/Fb-11; Ambient Temperature Rating -13 to 104 Deg F; Includes Aee Mounting Box; Application Motor Generator Unit, Welder, Pump, Compressor and Cellular Relay Station; Approval UL 1682/1686/50E, CSA C22.2; Applicable Standard NEMA Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pin and Sleeve Receptacle Box Assembly
• Unspsc: 39121406
• UPC 12 Digit: 781381158640
• SKU Name: app adre6034125
