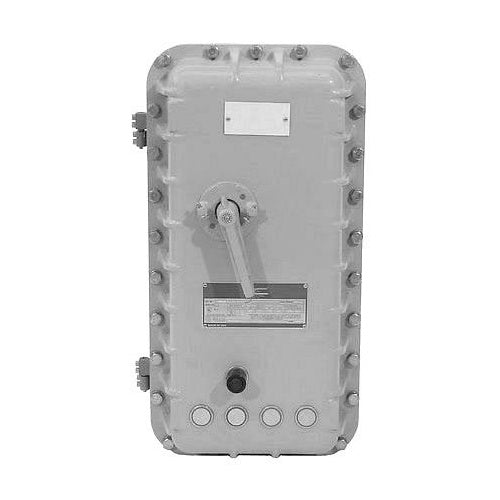

Appleton AE0BA Motor Starter Enclosure

Overview

Appleton AE0BA Motor Starter Enclosure

Product Specifications

• UPC: 78138185237
• Catalog Number: AE0BA
• Brand Name: Appleton[R]
• Model: AEB
• Control Device Size: NEMA 0
• Enclosure: CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/4X/7BCD/9EFG
• Material: GRAY EPOXY POWDER COATED COPPER FREE CAST ALUMINUM
• Used On: FULL VOLTAGE NON REVERSING STARTER
• Catalog Description: MOTOR STARTER ENCLOSURE, TYPE BOLTED, CONTROL DEVICE SIZE NEMA 00, ENCLOSURE CLASS I DIV 1 AND 2 GROUP B C D, CLASS I ZONE 1 AND 2 GROUP IIB, CLASS II, DIV 1 AND 2 GROUP E F G, NEMA 4/4X/7BCD/9EFG, MATERIAL CORROSION RESISTANT GRAY EPOXY POWDER COATED COPPER FREE ALUMINUM, USED ON FULL VOLTAGE NON REVERSING MOTOR STARTER, APPLICATION HAZARDOUS LOCATION
• Category: Starter Accessories
• Full Technical Description: Gray Epoxy Powder Coated Copper-Free Aluminum Material; Aeb Full Voltage/Non-Reversing Bolted Motor Starter Used on; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class I Zone 1 and 2 Group Iib + H2, Class III, NEMA 4/4X/7BCD/9EFG Enclosure; NEMA 0 Control Device Size; Overall Dimension 14.875 Inch Width X 11.062 Inch Depth X 16.625 Inch Height; Hub Size 1-1/2 Inch; Applicable Standard Nec/Cec; AEB Model
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Motor Control Enclosure
• Unspsc: 39121331
• UPC 12 Digit: 781381852371
• SKU Name: app ae0ba

Resources

• Manufacturer Spec Sheet
