Appleton AE1BM6W1 30A 600V Combination Lighting Contactor

Overview

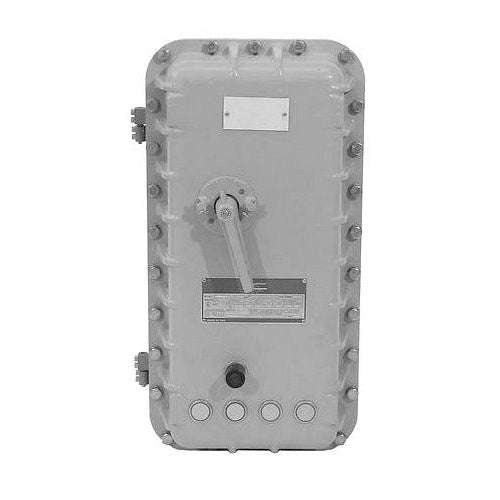

Appleton AE1BM6W1 30A 600V Combination Lighting Contactor

Product Specifications

• Catalog Description: LIGHTING CONTACTOR, TYPE ELECTRICALLY HELD, NUMBER OF POLES 12, VOLTAGE RATING 600 VAC, DISCONNECT CIRCUIT BREAKER, COIL VOLTAGE 120 VAC, ENCLOSURE NEMA 1, CONSTRUCTION STANDARD NEMA, APPROVAL UL, CSA, APPLICATION REQUIRED DISCONNECT UNDER VOLTAGE PROTECTION CIRCUIT PROTECTION AND MOTOR RUNNING PROTECTION, USED FOR REMOTE STARTING AND STOPPING OF MOTOR
• Category: Lighting Contactors
• Full Technical Description: Electrically Operated/Held, Bolted Type; NEMA 1 Size; UL 508/50/1203, CSA (Canada and Us), CSA C22.2 Approval; 600 Volt AC Voltage Rating; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class II, Class I Zone 1 and 2 Group Iib + H2, NEMA 4/4X/7BCD/9EFG Enclosure; 3 to 12 Pole(S); NEMA Construction Standard; 120 Volt AC Coil Voltage; Control Voltage Rating 120 Volt AC; Material Gray Epoxy Powder Coated Copper-Free Aluminum (Body/Cover), Neoprene (O-ring), Stainless Steel (Block Hinge/Cover Bolt/Handle/Breaker/Operator Shaft); Constructional Feature Explosionproof/Dust Ignitionproof, Water Tight; Applicable Standard Nec/Cec; AEB Model
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Magnetic Lighting Contactor
• Unspsc: 39121521
• UPC 12 Digit: 781381902779
• SKU Name: app ae1bm6w1
