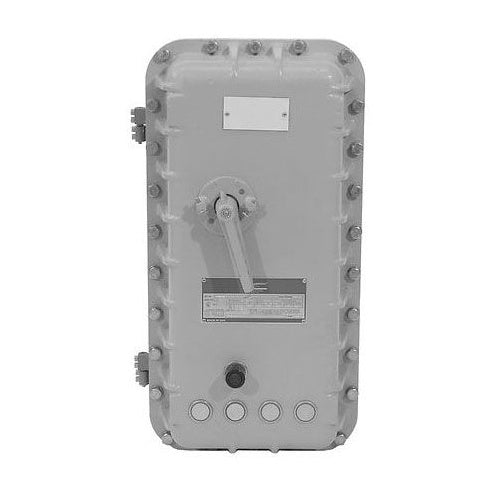

Appleton AE2BD4W1CJ Sz2 70A 480 Combination Starter

Overview

Appleton AE2BD4W1CJ Sz2 70A 480 Combination Starter

Product Specifications

• UPC: 78138185406
• Enclosure Type: CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/4X/7B/7C/7D/9E/9F/9G
• Material: CORROSION RESISTANT GRAY POWDERED EPOXY COATED (INSIDE, OUTSIDE) COPPER FREE ALUMINUM BODY, COVER; STAINLESS STEEL COVER BOLT HINGE; NEOPRENE O-RING
• Device Type: THERMAL MAGNETIC BREAKER
• Device Rating: 70 AMPERE
• Conduit Size: 1-1/2 INCH
• Size: NEMA 2
• Approval: CSA C22.2
• Catalog Number: AE2BD4W1CJ
• Brand Name: Appleton[R]
• Model: AEB
• Type: FULL VOLTAGE REVERSING STARTER WITH THERMAL MAGNETIC CIRCUIT BREAKER
• Constructional Feature: DUST IGNITION PROOF, EXPLOSION PROOF, WATER TIGHT
• Motor/Line Voltage: 480 V
• Power Rating: 25 HP
• Number Of Phases: 3
• Catalog Description: BOLTED MOTOR STARTER AND CONTACTOR, TYPE FULL VOLTAGE REVERSING STARTER, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST IGNITIONPROOF, WATERTIGHT, MOTOR/LINE VOLTAGE 480 VAC, ENCLOSURE TYPE CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, MATERIAL EPOXY COATED COPPER FREE ALUMINUM, DEVICE TYPE THERMAL MAGNETIC CIRCUIT BREAKER, DEVICE RATING 70 AMPERE, CONDUIT SIZE 1-1/2 INCH, SIZE NEMA 2, APPROVAL UL, CSA, APPLICATION HAZARDOUS LOCATION
• Category: Nema Combination Starters
• Full Technical Description: Full Voltage Reversing, Bolted Type; Gray Epoxy Powder Coated (Inside/Outside), Copper-Free Aluminum (Body/Cover), Stainless Steel (Cover Bolt/Hinge/Handle/Breaker/Operator Shaft), Neoprene (O-ring) Material; NEMA 2 Size; 3 Phase(S); UL 50/508/1203, CSA (Canada and Us), CSA C22.2 Approval; Explosionproof, Dust Ignitionproof, Water Tight; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class I Zone 1 and 2 Group Iib + H2, Class III, NEMA 4/4X/7BCD/9EFG Enclosure Type; 1-1/2 Inch Conduit Size; Thermal Magnetic Circuit Breaker Device Type; 70 Amp Device Rating; 480 Volt AC 60 Hertz Motor/Line Voltage; Control Voltage Rating 120 Volt AC Coil; Applicable Standard Nec/Cec; AEB Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Combination Motor Starter
• Unspsc: 39121521
• UPC 12 Digit: 781381854061
• SKU Name: app ae2bd4w1cj

Resources

• Manufacturer Spec Sheet
