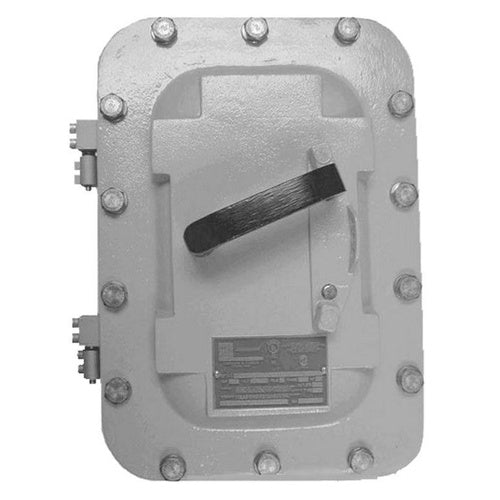

Appleton AEAB13220C 3P 20A 240V Enclosed Circuit Breaker

Overview

Appleton AEAB13220C 3P 20A 240V Enclosed Circuit Breaker

Product Specifications

• UPC: 78138185608
• Current Rating: 20 AMPERE
• Interrupting Rating: 18000 AMPERE AT 240 VAC
• Number Of Poles: 3
• Hub Size: (1) 1 1/2 INCH
• Hub Location: DEAD END
• Enclosure: CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/4X/7B/7C/7D/9E/9F/9G
• Enclosure Material: COPPER FREE CAST ALUMINUM
• Enclosure Finish: GRAY EPOXY POWDER COATED
• Shaft/Handle Material: STAINLESS STEEL
• Approval: CSA C22.2
• Catalog Number: AEAB13220C
• Brand Name: Appleton[R]
• Model: AE
• Type: BOLTED ENCLOSURE
• Constructional Feature: DUST IGNITION PROOF, EXPLOSION PROOF, WATER TIGHT
• Breaker Type: CUTLER HAMMER, EHD
• Trip Type: NON INTERCHANGEABLE
• Voltage Rating: 240 VAC, 125/250 VDC
• Catalog Description: ENCLOSED CIRCUIT BREAKER, TYPE BOLTED ENCLOSURE, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, WATERTIGHT, BREAKER TYPE CUTLER-HAMMER, EHD, TRIP TYPE NON-INTERCHANGEABLE, VOLTAGE RATING 240 V, CURRENT RATING 20 AMPERE, INTERRUPTING RATING 18000 AMPERE AT 240 VAC, 14000 AMPERE AT 480 VAC, NUMBER OF POLES 3, HUB SIZE 1-1/2 INCH, HUB LOCATION DEAD END, ENCLOSURE CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/4X, ENCLOSURE MATERIAL COPPER FREE ALUMINUM, ENCLOSURE FINISH GRAY EPOXY POWDER COATED, SHAFT/HANDLE MATERIAL STAINLESS STEEL, APPROVAL UL 1203, CSA C22.2, MATERIAL NEOPRENE (O-RING), STAINLESS STEEL (HINGES)
• Category: Enclosed 3 Pole Circuit Breakers
• Full Technical Description: Bolted Enclosure Type; 1-1/2 Inch Hub Size; Copper-Free Aluminum Enclosure Material; UL 1203, CSA C22.2 Approval; 240 Volt AC, 125/250 Volt DC Voltage Rating; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/4X Enclosure; 18000 Amp at 240 Volt AC Interrupting Rating; 20 Amp Current Rating; 3 Pole(S); Explosionproof, Dust Ignitionproof, Water Tight; Gray Epoxy Powder Coated Enclosure Finish; Cutler Hammer, Ehd Breaker Type; Non-Interchangeable Trip Type; Stainless Steel Shaft Shaft/Handle Material; Frame Rating 100 Amp; Enclosure Size 15 to 50 Amp; Material Stainless Steel (Cover Bolt/Hinge/Breaker), Neoprene (O-ring); Application Hazardous Location, O
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Enclosed Circuit Breaker
• Unspsc: 39121601
• UPC 12 Digit: 781381856089
• SKU Name: app aeab13220c

Resources

• Manufacturer Spec Sheet
