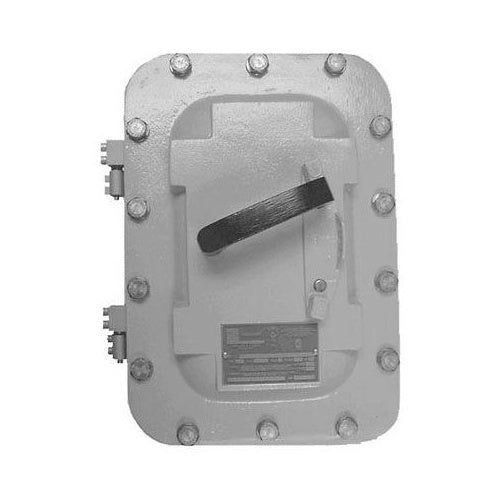

Appleton AEBB6036FDS 60A 600V Disconnect Switch

Overview

Appleton AEBB6036FDS 60A 600V Disconnect Switch

Product Specifications

• UPC: 78138184799
• Operator Type: External Handle
• Cover Type: Bolted
• Hub Size: 2 Inch
• Hub Location: Top, Bottom
• Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/4X/7/9
• Enclosure Material: Gray Epoxy Powder Coated Copper Free Aluminum
• Mounting: Mounting Feet
• Size: 11 Inch W x 8.97 Inch D x 20.5 Inch H
• Approval: UL, CSA
• Catalog Number: AEBB6036FDS
• Model: AE
• Constructional Feature: Dust Ignitionproof, Explosionproof
• Voltage Rating: 600 VAC, 125/250 VDC
• Current Rating: 60 Ampere
• Number Of Poles: 3
• Fuse Provision: Fusible
• Fuse Type: Type J
• Catalog Description: EXPLOSIONPROOF DISCONNECT SWITCH, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, VOLTAGE RATING 600 VAC, 125/250 VDC, CURRENT RATING 60 AMPERE, NUMBER OF POLES 3, FUSE PROVISION FUSIBLE, FUSE TYPE TYPE J, OPERATOR TYPE EXTERNAL HANDLE, COVER TYPE BOLTED, HINGED, HUB SIZE 2 INCH, HUB LOCATION TOP, BOTTOM, ENCLOSURE CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/4X/7/9, ENCLOSURE MATERIAL GRAY EPOXY POWDER COATED COPPER-FREE ALUMINUM, MOUNTING MOUNTING FEET, SIZE 11 INCH W X 8.97 INCH D X 20.5 INCH H, APPROVAL UL 1203, APPLICATION CHEMICAL PLANT, PETROCHEMICAL PLANT, PETROLEUM REFINERIES, INDUSTRIAL
• Category: Disconnect Motor Switches & Accessories
• Full Technical Description: 11 Inch Width X 8.97 Inch Depth X 20.5 Inch Height Size; 2 Inch Hub Size; Gray Epoxy Powder Coated Copper-Free Aluminum Enclosure Material; UL 1203, UL (Canada and Us) Approval; 600 Volt AC, 125/250 Volt DC Voltage Rating; Foot Mounting; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/4X Enclosure; 60 Amp Current Rating; Bolted, Hinged Cover Type; 10 HP at 120 Volt AC, 20 HP at 240 Volt AC, 40 HP at 480 Volt AC, 60 HP at 600 Volt AC, 15 HP at 250 Volt DC Power Rating; 3 Pole(S); Explosionproof, Dust Ignitionproof; External Handle Operator Type; Type J Fuse Type; Top, Bottom Hub Location
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Disconnect Switch
• Unspsc: 39121601
• UPC 12 Digit: 781381847995
• SKU Name: app aebb6036fds

Resources

• Manufacturer Spec Sheet
