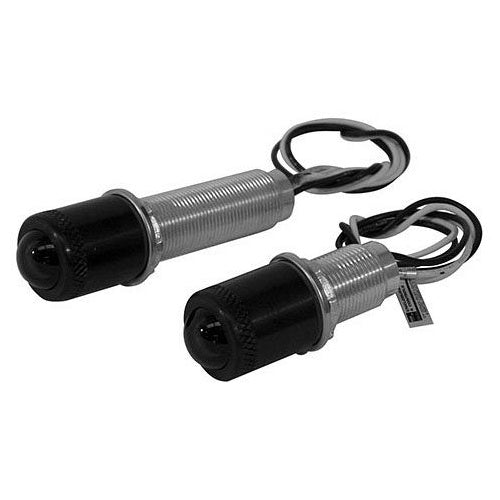

Appleton AEPL2GL 240V Green Pilot Light

Overview

Appleton AEPL2GL 240V Green Pilot Light

Product Specifications

• UPC: 78138191234
• Additional Information: BARREL TYPE LONG
• Catalog Number: AEPL2GL
• Brand Name: Appleton.
• Constructional Feature: EXPLOSION PROOF
• Lamp Input Type: 240/120 V TRANSFORMER
• Lens Style/Size: 1.25 INCH DIA
• Lens Color: GREEN
• Enclosure: CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/7/9
• Application: HAZARDOUS LOCATION
• Catalog Description: EXPLOSIONPROOF PILOT LIGHT, TYPE STANDARD, LONG BARREL, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, LAMP INPUT TYPE 240/120 VAC TRANSFORMER, LENS STYLE/SIZE 1.25 INCH DIA, LENS COLOR GREEN, LENS MATERIAL GLASS, ENCLOSURE CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/7BCD/9EFG, APPLICATION HAZARDOUS LOCATION, APPROVAL UL 1203/E77137, CSA C22.2
• Category: Pilot Light Complete Assemblies
• Full Technical Description: Long Barrel, Standard Type; Shot Blast Copper-Free Sand Cast Aluminum Enclosure Material; UL 1203, CSA C22.2 Approval; Hazardous Location Application; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/7BCD/9EFG Enclosure; Explosionproof; 240 Volt AC Transformer With 120 Volt AC Lamp Lamp Input Type; Glass Lens Material; Green Lens Color; Overall Length 4.37 Inch; Used on Acsew Control Operator; Applicable Standard Nec/Cec; AEPL Model
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Indicating Light
• Unspsc: 39121534
• UPC 12 Digit: 781381912341
• SKU Name: app aepl2gl
