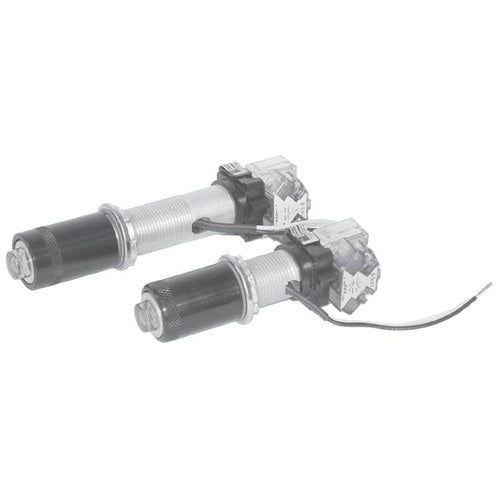

Appleton AEPTRBL 2-Normally Open Red Illuminated Pushbutton

Overview

Appleton AEPTRBL 2-Normally Open Red Illuminated Pushbutton

Product Specifications

• UPC: 78138191558
• Contact Configuration: 2NO
• Cap/Lens Color: RED
• Enclosure: CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/7B/7C/7D/9E/9F/9G
• Catalog Number: AEPTRBL
• Brand Name: Appleton[R]
• Model: AEP
• Type: LONG BARREL
• Constructional Feature: EXPLOSION PROOF
• Size: 3/4 INCH NPSM
• Contact Rating: 600 VAC
• Operation Type: MOMENTARY
• Catalog Description: EXPLOSIONPROOF ILLUMINATED PUSHBUTTON, TYPE LONG BARREL, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, CONTACT RATING 600 VAC 10 AMPERE, OPERATION TYPE MOMENTARY, CONTACT CONFIGURATION 2NO, CAP/LENS COLOR RED, ENCLOSURE CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/7BCD/9EFG, APPROVAL UL 1203/E77137, CSA C22.2, CONNECTION SIZE 3/4 INCH NPSM, APPLICATION HAZARDOUS LOCATION
• Category: Push Button Complete Assemblies
• Full Technical Description: Lighted, Long Barrel Type; 2NO Contact Configuration; Momentary Operation Type; 600 Volt AC 10 Amp Contact Rating; UL 1203, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/7BCD/9EFG Enclosure; Explosionproof; Red Cap/Lens Color; Thread Size 3/4 Inch NPSM; Material Stainless Steel (Shaft); Used on Acsew Control Operator; Applicable Standard Nec/Cec; AEPT Model
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Illuminated Pushbutton Switch
• Unspsc: 39122216
• UPC 12 Digit: 781381915588
• SKU Name: app aeptrbl
