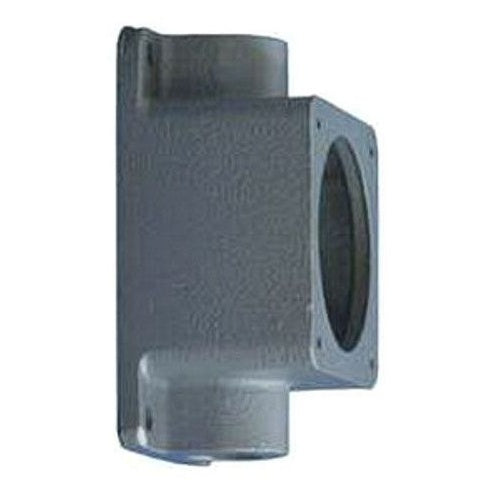

Appleton AERC56 Aluminum Mounting Unilet

Overview

Appleton AERC56 Aluminum Mounting Unilet

Product Specifications

• UPC: 78138122957
• Approval: UL 1682/1686/50E, CSA C22.2
• Used On: Pin and Sleeve Receptacle
• Additional Information: Overall Dimension 4.25 Inch Width x 3.13 Inch Depth x 6.5 Inch Height; Enclosure Rating NEMA 3/3R/4/4X; Application Welder, Generator, Compressor, Shipping Dock, Port, Ship to Store, Pump, Cellular Relay Station
• Catalog Number: AERC56
• Brand Name: Powertite[TM]
• Model: AE
• Type: With Front Opening
• Device Rating: 60 Amp
• Body Material: Epoxy Powder Coated Copper-Free Aluminum
• Number Of Mounting Lugs: 4
• Hub Size: 1-1/2 Inch
• Catalog Description: PIN AND SLEEVE RECEPTACLE MOUNTING BOX, TYPE WITH FRONT OPENING, DEVICE RATING 60 AMPERE, BODY MATERIAL EPOXY POWDER COATED COPPER FREE ALUMINUM, NUMBER OF MOUNTING LUGS 4, HUB SIZE 1-1/2 INCH, APPROVAL UL 1682/1686, USED ON PIN AND SLEEVE RECEPTACLE, CONTACT MATERIAL BRASS, INSULATIONBLOCK MATERIAL FIBERGLASSREINFORCEDPHENOLIC, APPLICATION WELDER, GENERATOR, COMPRESSOR, SHIPPING DOCKS, PORTS, SHIP TO STORE
• Category: Pin & Sleeve Devices
• Full Technical Description: With Front Opening Type; Pin and Sleeve Receptacle Used on; 1-1/2 Inch Hub Size; UL 1682 Approval; Epoxy Powder Coated Copper-Free Aluminum Body Material; 600 Volt AC, 250 Volt DC, 60 Amp Device Rating; Constructional Feature Weatherproof; Wire Size 8 to 4 AWG; Application Welder, Generator, Compressor, Pump, Shipping Dock, Port, Ship to Shore; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pin and Sleeve Back Box
• Unspsc: 39121303
• UPC 12 Digit: 781381229579
• SKU Name: app aerc56
