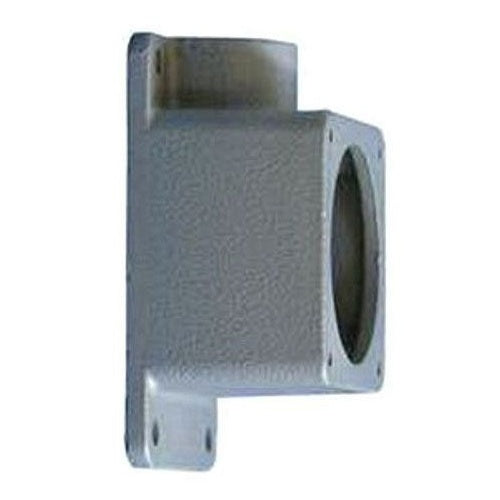

Appleton AERH56 Aluminum Mounting Unilet

Overview

Appleton AERH56 Aluminum Mounting Unilet

Product Specifications

• UPC: 78138122964
• Approval: UL 1682/1686/50E, CSA C22.2
• Used On: Pin and Sleeve Receptacle
• Additional Information: Overall Dimension 4.25 Inch Width x 3.13 Inch Depth x 6.5 Inch Height; Enclosure Rating NEMA 3/3R/4/4X; Application Welder, Generator, Compressor, Shipping Dock, Port, Ship to Store, Pump, Cellular Relay Station
• Catalog Number: AERH56
• Brand Name: Powertite[TM]
• Model: AER
• Type: With Front Opening
• Device Rating: 60 Amp
• Body Material: Epoxy Powder Coated Copper-Free Aluminum
• Number Of Mounting Lugs: 4
• Hub Size: 1-1/2 Inch
• Catalog Description: AE SERIES MOUNTING BOX, NUMBER OF OUTLET: 1, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALUMINUM, SIZE: 1-1/2 IN, CABLE ENTRY: (1) 1-1/2 IN HUB, MOUNTING: LUGS, KNOCKOUTS: NO, FINISH: EPOXY POWDER COAT, HEIGHT: 6-1/2 IN, WIDTH: 4-1/4 IN,
• Category: Pin & Sleeve Devices
• Full Technical Description: With Front Opening Type; Pin and Sleeve Receptacle Used on; 1-1/2 Inch Hub Size; UL 1682 Approval; Epoxy Powder Coated Copper-Free Aluminum Body Material; 600 Volt AC, 250 Volt DC, 60 Amp Device Rating; Constructional Feature Weatherproof; Wire Size 8 to 4 AWG; Application Welder, Generator, Compressor, Pump, Shipping Dock, Port, Ship to Shore; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pin and Sleeve Back Box
• Unspsc: 39121303
• UPC 12 Digit: 781381229647
• SKU Name: app aerh56
