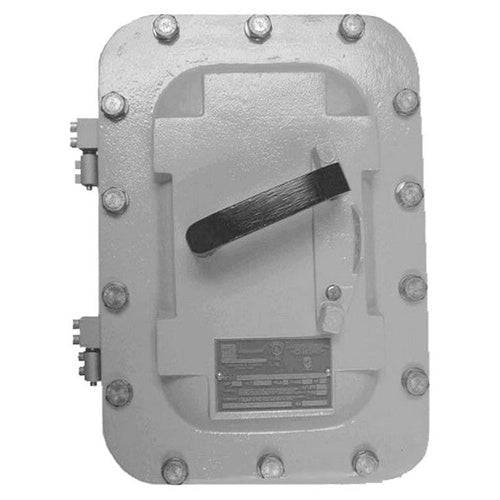

Appleton AES0T2403 Size-0 240V Starter

Overview

Appleton AES0T2403 Size-0 240V Starter

Product Specifications

• UPC: 78138188712
• Material: EPOXY COATED (INSIDE, OUTSIDE) CAST COPPER FREE ALUMINUM
• Conduit Size: 1-1/4 INCH
• Size: NEMA 0
• Enclosure Type: THREADED, CLASS I DIV 1 AND 2 GROUP C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/4X/7C/7D/9E/9F/9G
• Catalog Number: AES0T2403
• Brand Name: Appleton[R]
• Model: AE
• Type: FULL VOLTAGE NON REVERSING STARTER
• Constructional Feature: DUST IGNITION PROOF, EXPLOSION PROOF, WATER TIGHT
• Motor/Line Voltage: 240 V AT 60 HZ
• Power Rating: 3 HP
• Number Of Phases: 3
• Catalog Description: MANUAL MOTOR STARTER, TYPE FULL VOLTAGE NON-REVERSING STARTER, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST IGNITIONPROOF, WATERTIGHT, MOTOR/LINE VOLTAGE 240 VAC, POWER RATING 3 HP, NUMBER OF PHASES 3, MATERIAL CAST COPPER FREE ALUMINUM, CONDUIT SIZE 1-1/4 INCH, SIZE NEMA 0, ENCLOSURE TYPE CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/4X/7B/7CD/9E/9F/9G, APPROVAL UL, APPLICATION DISCONNECT UNDER VOLTAGE CIRCUIT PROTECTION AND MOTOR RUNNING PROTECTION, USED FOR REMOTE STARTING AND STOPPING OF MOTOR
• Category: Nema Non-Combination Starters
• Full Technical Description: Copper-Free Aluminum (Enclosure/Cover), Stainless Steel (Switch/Operator Shaft/Cover Bolt/Hinge), Neoprene (O-ring) Material; Explosionproof, Dust Ignitionproof, Water Tight; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/4X Enclosure Type; Applicable Standard NEC
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Motor Starter
• Unspsc: 39121521
• UPC 12 Digit: 781381887120
• SKU Name: app aes0t2403

Resources

• Manufacturer Spec Sheet
