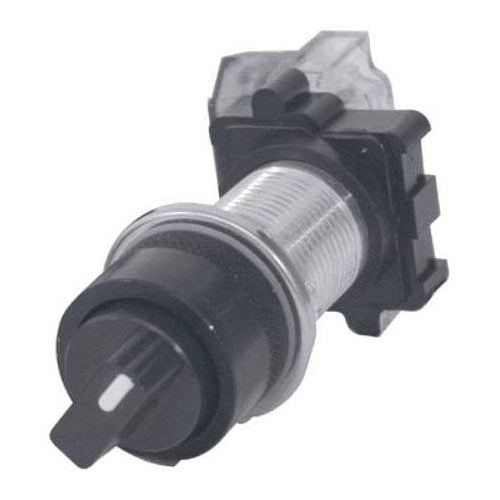

Appleton AESS34KSNL 3-Position Momentary Selector Switch

Overview

Appleton AESS34KSNL 3-Position Momentary Selector Switch

Product Specifications

• UPC: 78138191665
• Enclosure Material: SHOT BLAST COPPER FREE ALUMINUM
• Enclosure: CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/7B/7C/7D/9E/9F/9G
• Additional Information: WITH LONG BUSHING
• Catalog Number: AESS34KSNL
• Brand Name: Appleton[R]
• Type: KEY
• Contact Rating: 600 VAC
• Operation Type: MOMENTARY
• Contact Configuration: 2NC
• Number Of Positions: 3
• Throw: LEFT-CENTER-RIGHT
• Catalog Description: EXPLOSIONPROOF NON-ILLUMINATED SELECTOR SWITCH, TYPE KEY, LONG BUSH, CONTACT RATING 600 VAC 10 AMPERE, OPERATION TYPE SPRING RETURN, CONTACT CONFIGURATION 2NC, NUMBER OF POSITIONS 3, THROW LEFT-CENTER-RIGHT, ENCLOSURE MATERIAL COPPER-FREE ALUMINUM, ENCLOSURE CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/7BCD/9EFG, APPROVAL UL 1203/E77137, CSA C22.2, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, APPLICATION HAZARDOUS LOCATION, NUMBER OF CAM LOCATION 4
• Category: Selector Switch Complete Assemblies
• Full Technical Description: Key, Long Barrel Type; 1NC-1NC Contact Configuration; Key Operated Spring Return Operation Type; Shot Blast Copper-Free Sand Cast Aluminum Enclosure Material; 600 Volt AC 10 Amp Contact Rating; UL 1203, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/7BCD/9EFG Enclosure; 3 Position(S); Left-Center-Right Throw; Number of CAM Location 4; Shaft Material Stainless Steel; Application Hazardous Location; Applicable Standard Nec/Cec; AESS Model
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Non Illuminated Selector Switch
• Unspsc: 39122217
• UPC 12 Digit: 781381916653
• SKU Name: app aess34ksnl

Resources

• Manufacturer Spec Sheet
