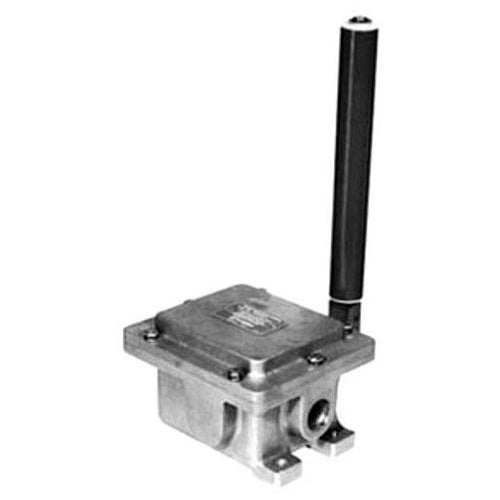

Appleton AFAX20 Belt Alignment Switch 2SPDT

Overview

Appleton AFAX20 Belt Alignment Switch 2SPDT

Product Specifications

• UPC: 78138174176
• Contact Configuration: 2 SPDT
• Cable/Conduit Entry: 3/4 Inch NPT Hub
• Operating Temperature: -40 to 150 Deg F
• Enclosure: NEMA 7C/7D/9E/9F/9G
• Enclosure Material: Cast Aluminum
• Enclosure Finish: Epoxy Powder Coated
• Operator Color: Red Epoxy Powder Coated Roller
• Approval: UL 508/698, CSA C22.2
• Catalog Number: AFAX20
• Model: AFAX
• Type: Post Style
• Voltage Rating: 125/480 VAC, 250 VDC
• Current Rating: 20 Ampere
• Power Rating: 1 HP at 125 VAC, 2 HP at 250 VAC
• Operator Type: Spring Loaded Arm with Roller, Stainless Steel Shaft
• Operator Size: 1.25 Inch Dia x 9.75 Inch H (Roller)
• Catalog Description: POST STYLE BELT ALIGNMENT SWITCH, VOLTAGE RATING: 480 VAC, 250 VDC, AMPERAGE RATING: 20 AMP, CONTACT CONFIGURATION: SPDT, ENCLOSURE: NEMA 7CD, 9EFG, HP RATING: 1 HP AT 125 VAC, 2 HP AT 250 VAC, MATERIAL: CAST ALUMINUM HOUSING, OPERATOR SIZ
• Category: Fusible Heavy Duty Safety Switches
• Full Technical Description: Post Style Type; (2) SPDT Contact Configuration; Cast Aluminum Enclosure Material; UL 508/698, CSA C22.2 Approval; 125/480 Volt AC, 250 Volt DC Voltage Rating; Class II Div 1 and 2 Group E F G, NEMA 9 Enclosure; 20 Amp Current Rating; 1 HP at 125 Volt AC, 2 HP at 250 Volt AC Power Rating; -40 to 149 Deg F Operating Temperature; Spring Loaded Arm With Roller, Stainless Steel Shaft Operator Type; Peened Enclosure Finish; 3/4 Inch Threaded Cable/Conduit Entry; Red Epoxy Powder Coated Roller Operator Color; 1.25 Inch Diameter X 9.75 Inch Height (Roller) Operator Size; Switch Electric Rating 1; Material Steel (Roller), Stainless Steel (Shaft); Application Emergency Stop Switch, Magnetic Motor Starter, Alarm/Computer Interface, Steel Mill, Mining, Warehouse, Loading Dock; Applicable Standard Nec/Cec; AFAX Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conveyor Belt Alignment Switch
• Unspsc: 39122240
• UPC 12 Digit: 781381741767
• SKU Name: app afax20

Resources

• Manufacturer Spec Sheet
