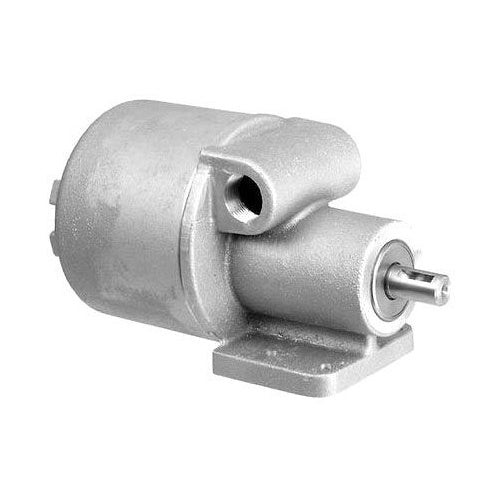

Appleton AFSX300 Speed Responsive Switch

Overview

Appleton AFSX300 Speed Responsive Switch

Product Specifications

• UPC: 78138182455
• Catalog Number: AFSX300
• Contact Rating: 240 VAC/24 VDC 6 AMPERE
• Contact Configuration: DPDT
• Material: CAST ALUMINUM
• Finish: EPOXY POWDER COATED
• Operating Temperature: - 50 TO 150 DEG F
• Application: CONVEYOR, ELEVATOR, ROTATING MACHINERY
• Additional Information: CONDUIT OPENING SIZE 3/4 INCH NPT
• Catalog Description: SPEED RESPONSIVE SWITCH, VOLTAGE RATING 240 VAC/24 VDC, CURRENT RATING 5 AMPERE, POWER RATING 3 W, OPERATOR TYPE STAINLESS STEEL SHAFT, OPERATOR SIZE 0.63 INCH DIA X 3 INCH L, CONTACT CONFIGURATION DPDT, CABLE/CONDUIT ENTRY 3/4 INCH NPT, OPERATING TEMPERATURE -50 TO 150 DEG F, ENCLOSURE CLASS I DIV 1 AND 2 GROUP C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 7CD, 9EFG, ENCLOSURE MATERIAL CAST COPPER-FREE ALUMINUM, ENCLOSURE FINISH CORROSION RESISTANT EPOXY POWDER COAT, APPLICATION BELT CONVEYOR, SCREW CONVEYOR, BUCKET ELEVATOR, ROTATING MACHINERY, CONSTRUCTIONAL FEATURE SHOCK RESISTANT, SPEED RATING 0.1 TO 1000 RPM
• Category: Rotary Motor Switches & Accessories
• Full Technical Description: Corrosion Resistant Epoxy Powder Coated Copper-Free Cast Aluminum Enclosure Material; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group F G, Class III, NEMA 7CD/9FG Enclosure; -49 to 149 Deg F Operating Temperature; 100 Pound Axial Load Rating; 125 Pound Radial Load Rating; Input Voltage Rating 105/135 Volt AC 50/60 Hertz; Output Current Rating 5 Amp at 120 Volt AC (Resistive), 5 Amp at 240 Volt AC, 5 Amp at 30 Volt DC; Power Consumption 3 Watt; Shaft Diameter 5/8 Inch; Conduit Opening Size 3/4 Inch Threaded; Signal Range 0.1 to 1000 RPM; Material Stainless Steel (Shaft/Woodruff Key and Hardware), Cast Zinc (Flexible Coupling), Neoprene (Sleeve); A
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Speed Switch
• Unspsc: 39122240
• UPC 12 Digit: 781381824552
• SKU Name: app afsx300

Resources

• Manufacturer Spec Sheet
