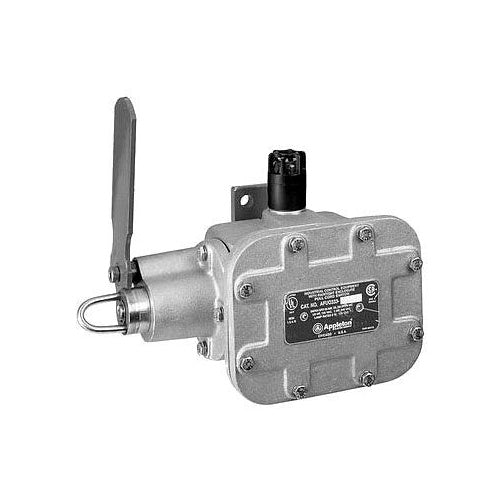

Appleton AFU033380 Pull Cord Switch

Overview

Appleton AFU033380 Pull Cord Switch

Product Specifications

• UPC: 78138174157
• Cable/Conduit Entry: (2) 1 Inch Hub
• Body Material: Cast Aluminum
• Body Finish: Peened
• Size: 11-3/16 Inch L x 7-7/8 Inch D x 5-1/2 Inch H
• Enclosure: NEMA 3/3R/4/4X/12
• Application: Ordinary Location
• Approval: UL 508/698/1203
• Additional Information: Switch Temperature Range -40 to 150 Deg F
• Catalog Number: AFU033380
• Model: AFU
• Type: Single End Left Hand, Pull Cord
• Operator Type: Flag Arm
• Voltage Rating: 125/250/480 VAC, 125/250 VDC
• Current Rating: 20 Ampere at 125/250/480 VAC, 10 Ampere at 125 VAC, 0.5 Ampere at 125 VDC, 0.25 Ampere at 250 VDC
• Contact Configuration: (2) SPDT
• Operating Force: 25 Lb
• Catalog Description: CONVEYOR CONTROL SWITCH, TYPE SINGLE END LEFT HAND, PULL CORD, OPERATOR TYPE FLAG ARM, VOLTAGE RATING 125/250/480 VAC, 125/250 VDC, CURRENT RATING 20 AMPERE AT 125/250/480 VAC, 10 AMPERE AT 125 VAC, 0.5 AMPERE AT 125 VDC, 0.25 AMPERE AT 250 VDC, CONTACT CONFIGURATION (2) SPDT, OPERATING FORCE 25 LB, CABLE/CONDUIT ENTRY (2) 1 INCH HUB, BODY MATERIAL CAST ALUMINUM, BODY FINISH PEENED, SIZE 11-3/16 INCH L X 7-7/8 INCH D X 5-1/2 INCH H, ENCLOSURE NEMA 3/3R/4/4X/12, APPLICATION ORDINARY LOCATION, APPROVAL UL 508/698/1203, TEMPERATURE RANGE -40 TO 150 DEG F
• Category: Cable Pull Switches & Accessories
• Full Technical Description: Single End Left Hand, Pull Cord Type; 7.88 Inch Width X 9.75 Inch Height Size; (2) SPDT Contact Configuration; UL 508/698/1203, CSA C22.2 Approval; Ordinary Location, Conveyor Line, Crane, Unloader, Bulk Handling System, Steel Mill, Mining Ore and Coal Handling Operation, Automotive and Other Assembly Line, Warehouse, Loading Dock, Industry Application; 125/250/480 Volt AC, 125/250 Volt DC Voltage Rating; NEMA 3/4/4X/12 Enclosure; 20 Amp at 125/250/480 Volt AC, 10 Amp at 125 Volt AC, 0.5 Amp at 125 Volt DC, 0.25 Amp at 250 Volt DC Current Rating; Cast Aluminum Body Material; Flag Arm Operator Type; Peened (Enclosure) Body Finish; 25 Pound Operating Force; (2) 1 Inch Conduit (Top and Bottom) Cable/Conduit Entry; Power Rating 1 HP at 125 Volt AC, 2 HP at 250 Volt AC; Temperature Rating -40 to 151 Deg F; Material Stainless Steel
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conveyor Control Switch
• Unspsc: 39122239
• UPC 12 Digit: 781381741576
• SKU Name: app afu033380
