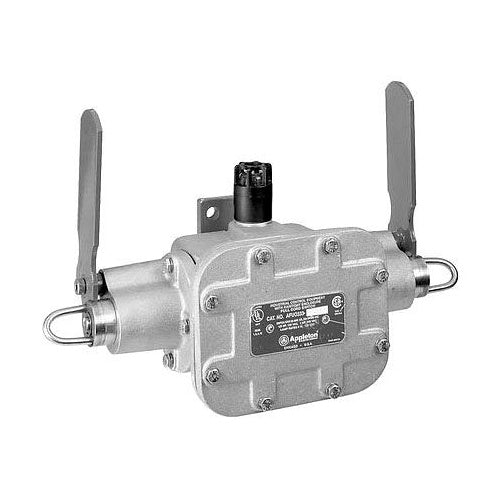

Appleton AFUX033366 Pull Cord Switch

Overview

Appleton AFUX033366 Pull Cord Switch

Product Specifications

• UPC: 78138174136
• Cable/Conduit Entry: (2) 1 Inch Hub
• Body Material: Cast Aluminum
• Body Finish: Peened
• Size: 15-1/2 Inch L x 7-7/8 Inch D x 5-1/2 Inch H
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III
• Application: Hazardous Location
• Approval: UL 508/698/1203
• Additional Information: Switch Temperature Range -40 to 150 Deg F
• Catalog Number: AFUX033366
• Model: AFUX
• Type: Double End, Pull Cord
• Operator Type: Flag Arm
• Voltage Rating: 120/240/480/600 VAC, 115/230 VDC
• Current Rating: 15 Ampere at 120/240/480/600 VAC, 0.8 Ampere at 115 VDC, 0.4 Ampere at 230 VDC
• Contact Configuration: 2NO-2NC Double Break (Each End)
• Operating Force: 25 Lb
• Catalog Description: CONVEYOR CONTROL SWITCH, TYPE DOUBLE END, PULL CORD, OPERATOR TYPE FLAG ARM, VOLTAGE RATING 120/240/480/600 VAC, 115/230/250 VDC, CURRENT RATING 15 AMPERE AT 120/240/480/600 VAC, 0.8 AMPERE AT 250 VAC/115 VDC, 0.4 AMPERE AT 230 VDC, CONTACT CONFIGURATION 2NO-2NC DOUBLE BREAK (EACH END), OPERATING FORCE 25 LB, CABLE/CONDUIT ENTRY (2) 1 INCH HUB, BODY MATERIAL CAST ALUMINUM, BODY FINISH PEENED, SIZE 15-1/2 INCH L X 7-7/8 INCH D X 5-1/2 INCH H, ENCLOSURE CLASS I DIV 1 AND 2 GROUP C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 7CD/9EFG, APPLICATION HAZARDOUS LOCATION, APPROVAL UL 508/698/1203, TEMPERATURE RANGE -40 TO 150 DEG F
• Category: Cable Pull Switches & Accessories
• Full Technical Description: Double End, Pull Cord Type; 7.88 Inch Width X 9.75 Inch Height Size; 2NO-2NC Double Break (Each End) Contact Configuration; UL 508/698/1203, CSA C22.2 Approval; Hazardous Location, Conveyor Line, Crane, Unloader, Bulk Handling System, Steel Mill, Mining Ore and Coal Handling Operation, Automotive and Other Assembly Line, Warehouse, Loading Dock, Industry Application; 120/240/480/600 Volt AC, 115/230 Volt DC Voltage Rating; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 7CD/9EFG Enclosure; 15 Amp at 120/240/480/600 Volt AC, 0.8 Amp at 115 Volt DC, 0.4 Amp at 230 Volt DC Current Rating; Cast Aluminum Body Material; Flag Arm Operator Type; Peened (Enclosure) Body Finish; 25 Pound Operating Force; (2)
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conveyor Control Switch
• Unspsc: 39122239
• UPC 12 Digit: 781381741361
• SKU Name: app afux033366
