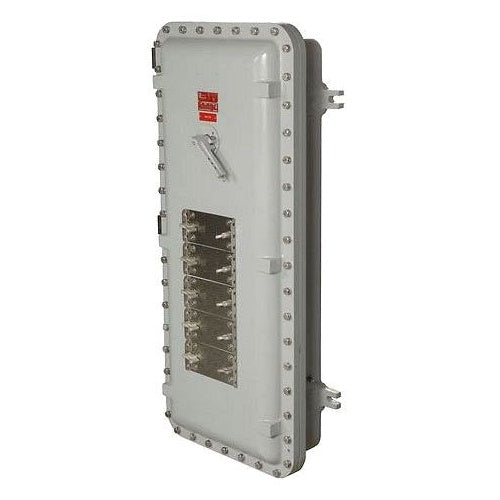

Appleton AGPNA11A12ML 240V Ground Fault Panelboard

Overview

Appleton AGPNA11A12ML 240V Ground Fault Panelboard

Product Specifications

• Catalog Description: EXPLOSIONPROOF CIRCUIT BREAKER DISTRIBUTION PANELBOARD, VOLTAGE RATING 120/240 V, CURRENT RATING 100 AMPERE, NUMBER OF CIRCUITS 12, MAIN CIRCUIT CONFIGURATION 1 PHASE 3 WIRE, ENCLOSURE MATERIAL COPPER FREE ALUMINUM, ENCLOSURE FINISH CORROSION RESISTANT GREY EPOXY POWDER COATED, ENCLOSURE CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, CLASS I ZONE 1 GROUP IIB, NEMA 4/4X/7BCD/9EFG, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, WATERTIGHT, MOUNTING FEET, SIZE 21 INCH W X 11 INCH D X 21 INCH H, APPROVAL UL 1203, APPLICABLE STANDARD NEC, MATERIAL COPPER-FREE ALUMINUM (COVER, BREAKER OPERATOR), STAINLESS STEEL (HINGE, COVER BOLT), COPPER (BUS BAR), NEOPRENE (O-RING), APPLICATION HAZARDOUS LOCATION, CONSTRUCTION TYPE MAIN LUG
• Category: Single Phase Main Lug Bolt-On Lighting Panelboard Interiors
• Full Technical Description: Main Lug Type; 21 Inch Width X 11 Inch Depth X 21 Inch Height Size; Copper-Free Aluminum Enclosure Material; 1-Phase 3-Wire Configuration; UL 1203 Approval; 120/240 Volt AC Voltage Rating; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Lighting Panelboard
• Unspsc: 39121103
• UPC 12 Digit: 781381906227
• SKU Name: app agpna11a12ml

Resources

• Manufacturer Spec Sheet
