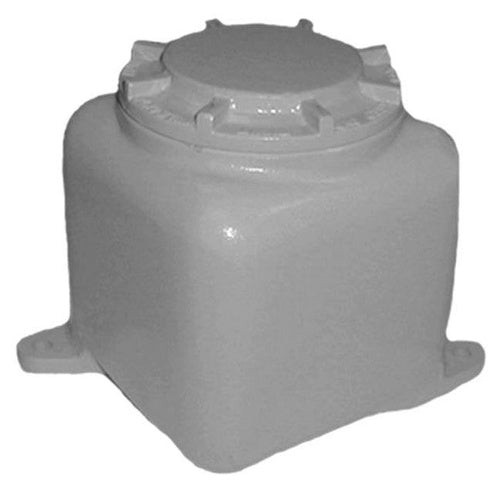

Appleton AGUB1093A 10X9X3 Aluminum Meter Enclosure

Overview

Appleton AGUB1093A 10X9X3 Aluminum Meter Enclosure

Product Specifications

• UPC: 78138188622
• Cover Material: CORROSION RESISTANT GRAY EPOXY POWDER COATED CAST COPPER FREE ALUMINUM
• Size: 6-7/16 INCH D X 11-9/16 INCH H
• Mounting Hardware: FEET
• Enclosure: CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/4X/7B/7C/7D/9E/9F/9G
• Approval: UL 886, CSA C22.2
• Catalog Number: AGUB1093A
• Brand Name: Appleton[R]
• Model: AGUB
• Constructional Feature: DUST IGNITION PROOF, EXPLOSION PROOF
• Hub Size: 2 INCH
• Cover Type: SOLID
• Body Material: CAST COPPER FREE ALUMINUM
• Body Finish: CORROSION RESISTANT GRAY EPOXY POWDER COATED
• Catalog Description: INSTRUMENT AND METER BOX WITH COVER, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, NUMBER OF HUBS 1, HUB SIZE 2 INCH, COVER TYPE SOLID, BODY MATERIAL COPPER-FREE ALUMINUM, BODY FINISH GRAY POWDER EPOXY COATED, COVER MATERIAL COPPER-FREE ALUMINUM, SIZE 10 INCH W X 3.94 INCH D X 9 INCH H, MOUNTING HARDWARE FEET, ENCLOSURE CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/4X/BCD/9EFG, APPROVAL UL 886/1203, CSA C22.2, UL ( CANADA)
• Category: Meter Boxes
• Full Technical Description: 10.56 Inch Width X 6.44 Inch Depth X 11.56 Inch Height Size; 2 Inch Hub Size; UL 1203, UL (Canada and Us), CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/4X/7BCD/9EFG Enclosure; Solid Cover Type; Copper-Free Aluminum Body Material; Explosionproof, Dust Ignitionproof; Foot Mounting Hardware; Gray Epoxy Powder Coated Copper-Free Aluminum Cover Material; Gray Epoxy Powder Coated Body Finish; Inside Dimension 10 Inch Width X 3.94 Inch Depth X 9 Inch Height; Cover Opening Size 8.88 Inch; Cover Diameter 9.75 Inch; O-ring Material Neoprene; Application Hazardous Location; Applicable Standard Nec/Cec; AGUB Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Instrument Enclosure
• Unspsc: 39121314
• UPC 12 Digit: 781381886222
• SKU Name: app agub1093a
