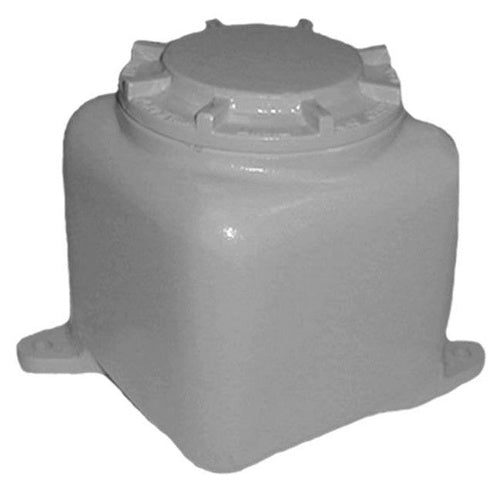

Appleton AGUB664A 6X6X4 Aluminum Meter Enclosure

Overview

Appleton AGUB664A 6X6X4 Aluminum Meter Enclosure

Product Specifications

• UPC: 78138188617
• Size: 6.13 Inch W x 4.25 Inch D x 6.13 Inch H
• Mounting Hardware: Feet
• Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/4X/7B/7C/7D/9E/9F/9G
• Used On: AGUB Series Instrument and Meter Enclosure
• Approval: UL 886, CSA C22.2
• Additional Information: Cover Opening Size 5.94 Inch
• Catalog Number: AGUB664A
• Model: AGUB
• Constructional Feature: Explosionproof, Dust Ignitionproof
• Hub Size: 2 Inch
• Cover Type: Solid
• Body Material: Copper Free Aluminum
• Body Finish: Corrosion Resistant Gray Epoxy Powder Coated
• Cover Material: Corrosion Resistant Gray Epoxy Powder Coated Copper Free Aluminum
• Catalog Description: INSTRUMENT AND METER BOX WITH COVER, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, NUMBER OF HUBS 1, HUB SIZE 2 INCH, COVER TYPE SOLID, BODY MATERIAL COPPER-FREE ALUMINUM, BODY FINISH GRAY POWDER EPOXY COATED, COVER MATERIAL COPPER-FREE ALUMINUM, SIZE 6.13 INCH W X 4.25 INCH D X 6.13 INCH H, MOUNTING HARDWARE FEET, ENCLOSURE CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/4X/BCD/9EFG, APPROVAL UL 886/1203, CSA C22.2, UL ( CANADA)
• Category: Meter Boxes
• Full Technical Description: 7 Inch Width X 6.5 Inch Depth X 7 Inch Height Size; 2 Inch Hub Size; UL 1203, UL (Canada and Us), CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/4X/7BCD/9EFG Enclosure; Solid Cover Type; Copper-Free Aluminum Body Material; Explosionproof, Dust Ignitionproof; Foot Mounting Hardware; Gray Epoxy Powder Coated Copper-Free Aluminum Cover Material; Gray Epoxy Powder Coated Body Finish; Inside Dimension 6.13 Inch Width X 4.25 Inch Depth X 6.13 Inch Height; Cover Opening Size 5.94 Inch; Cover Diameter 6.5 Inch; O-ring Material Neoprene; Application Hazardous Location; Applicable Standard Nec/Cec; AGUB Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Instrument Enclosure
• Unspsc: 39121314
• UPC 12 Digit: 781381886178
• SKU Name: app agub664a

Resources

• Manufacturer Spec Sheet
