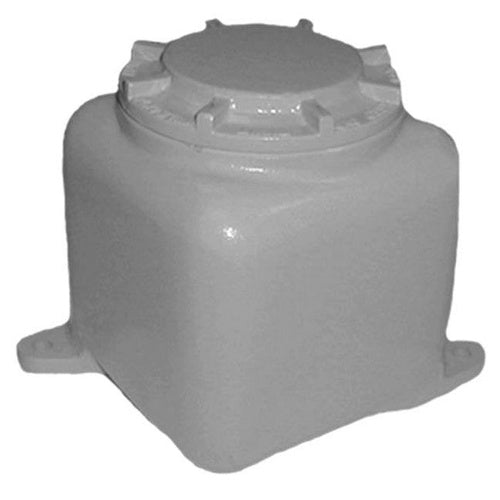

Appleton AGUBSW10106A 10X10X6 Window Meter Enclosure

Overview

Appleton AGUBSW10106A 10X10X6 Window Meter Enclosure

Product Specifications

• UPC: 78138188637
• Cover Material: CORROSION RESISTANT GRAY EPOXY POWDER COATED CAST COPPER FREE ALUMINUM
• Size: 9-3/8 INCH D X 11-5/8 INCH H
• Mounting Hardware: FEET
• Enclosure: CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/4X/7B/7C/7D/9E/9F/9G
• Approval: UL 886, CSA C22.2
• Catalog Number: AGUBSW10106A
• Brand Name: Appleton[R]
• Model: AGUB
• Constructional Feature: DUST IGNITION PROOF, EXPLOSION PROOF
• Hub Size: 4 INCH
• Cover Type: WINDOW
• Body Material: CAST COPPER FREE ALUMINUM
• Body Finish: CORROSION RESISTANT GRAY EPOXY POWDER COATED
• Catalog Description: INSTRUMENT AND METER BOX WITH COVER, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, NUMBER OF HUBS 1, HUB SIZE 3 INCH, COVER TYPE WINDOW, BODY MATERIAL COPPER-FREE ALUMINUM, BODY FINISH GRAY POWDER EPOXY COATED, COVER MATERIAL COPPER-FREE ALUMINUM, SIZE 10.13 INCH W X 6 INCH D X 10.13 INCH H, MOUNTING HARDWARE FEET, ENCLOSURE CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/4X/BCD/9EFG, APPROVAL UL 886/1203, CSA C22.2, UL ( CANADA)
• Category: Meter Boxes
• Full Technical Description: 11.62 Inch Width X 9.38 Inch Depth X 11.62 Inch Height Size; 3 Inch Hub Size; UL 1203, UL (Canada and Us), CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/4X/7BCD/9EFG Enclosure; Window Cover Type; Copper-Free Aluminum Body Material; Explosionproof, Dust Ignitionproof; Foot Mounting Hardware; Gray Epoxy Powder Coated Copper-Free Aluminum Cover Material; Gray Epoxy Powder Coated Body Finish; Inside Dimension 10.13 Inch Width X 6 Inch Depth X 10.13 Inch Height; Cover Opening Size 9.25 Inch; Cover Diameter 10.25 Inch; O-ring Material Neoprene; Application Hazardous Location; Applicable Standard Nec/Cec; AGUB Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Instrument Enclosure
• Unspsc: 39121314
• UPC 12 Digit: 781381886376
• SKU Name: app agubsw10106a
