Product Description

Overview

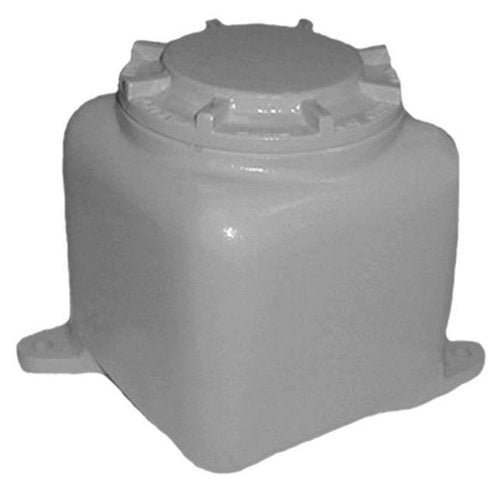

Appleton AGUBSW976A 9X7X6 Window Meter Enclosure

Product Specifications

  • Part Number: AGUBSW976A
  • UPC / GTIN: 78138188633
  • UPC: 78138188633
  • Cover Material: CORROSION RESISTANT GRAY EPOXY POWDER COATED CAST COPPER FREE ALUMINUM
  • Size: 8-7/16 INCH D X 10-1/4 INCH H
  • Mounting Hardware: FEET
  • Enclosure: CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/4X/7B/7C/7D/9E/9F/9G
  • Approval: UL 886, CSA C22.2
  • Brand Name: Appleton[R]
  • Model: AGUB
  • Constructional Feature: DUST IGNITION PROOF, EXPLOSION PROOF
  • Hub Size: 2 INCH
  • Cover Type: WINDOW
  • Body Material: CAST COPPER FREE ALUMINUM
  • Body Finish: CORROSION RESISTANT GRAY EPOXY POWDER COATED
  • CATALOG DESCRIPTION: INSTRUMENT AND METER BOX WITH COVER, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, NUMBER OF HUBS 1, HUB SIZE 2 INCH, COVER TYPE WINDOW, BODY MATERIAL COPPER-FREE ALUMINUM, BODY FINISH GRAY POWDER EPOXY COATED, COVER MATERIAL COPPER-FREE ALUMINUM, SIZE 9.25 INCH W X 6 INCH D X 7.5 INCH H, MOUNTING HARDWARE FEET, ENCLOSURE CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/4X/BCD/9EFG, APPROVAL UL 886/1203, CSA C22.2, UL ( CANADA)
  • Full Technical Description: 8.5 Inch Width X 8.44 Inch Depth X 10.25 Inch Height Size; 2 Inch Hub Size; UL 1203, UL (Canada and Us), CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/4X/7BCD/9EFG Enclosure; Window Cover Type; Copper-Free Aluminum Body Material; Explosionproof, Dust Ignitionproof; Foot Mounting Hardware; Gray Epoxy Powder Coated Copper-Free Aluminum Cover Material; Gray Epoxy Powder Coated Body Finish; Inside Dimension 9.25 Inch Width X 6 Inch Depth X 7.5 Inch Height; Cover Opening Size 7 Inch; Cover Diameter 7.75 Inch; O-ring Material Neoprene; Application Hazardous Location; Applicable Standard Nec/Cec; AGUB Model
  • Manufacturer: Appleton Electric
  • Product Description: Appleton AGUBSW976A 9X7X6 Window Meter Enclosure
  • UNSPSC: 39121314
  • UPC 12 Digit: 781381886338
