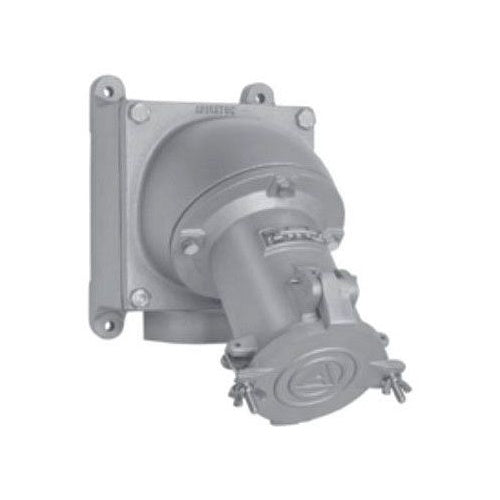

Appleton AJA20034250RS 3W-4P Receptacle

Overview

Appleton AJA20034250RS 3W-4P Receptacle

Product Specifications

• UPC: 78138129522
• Grounding Style: 2, SHELL, EXTRA POLE
• Door Type: CLAMP COVER
• Hub Type: 2-1/2 INCH
• Material: EPOXY POWDER COATED COPPER FREE ALUMINUM
• Additional Information: APPLICATION COMPRESSOR, MOTOR GENERATOR UNIT, PUMP, SHIPPING DOCKS, SHIPPING PORTS, WELDING; CONTACT MATERIAL COPPER
• Catalog Number: AJA20034250RS
• Brand Name: Powertite[R]
• Type: POLARIZED, REVERSE SERVICE
• Constructional Feature: RAIN TIGHT
• Voltage Rating: 600 VAC 3 PHASE AT 50 TO 400 HZ/250 VDC
• Current Rating: 200 AMPERE
• Number Of Poles: 4
• Number Of Wires: 3
• Catalog Description: POWERTITE GROUNDING STYLE 2 RECEPTACLE WITH AJA MOUNTING BOX, NUMBER OF POLES: 4, NUMBER OF WIRES: 3, WIRE SIZE: 2/0 AWG - 250 MCM, AMPERAGE RATING: 200 AMP, VOLTAGE RATING: 600 VAC AT 50 - 400 HZ, 250 VDC, PHASE: 3 PH, MATERIAL: CO
• Category: Pin & Sleeve Devices
• Full Technical Description: Positive Polarization, Reverse Service Type; Epoxy Powder Coated Copper-Free Aluminum Material; 3 Wire(S); 600 Volt AC 50/400 Hertz 3-Phase, 250 Volt DC Voltage Rating; 200 Amp Current Rating; 4 Pole(S); Weatherproof; 2-1/2 Inch Hub Type; Clamp; Shell, Extra Pole, 2 Grounding Style; POWERTITE[TM] Brand; Wire Size 250 MCM to 1/0 AWG; Wire Recess Diameter 0.687 Inch; Contact Material Copper; Insulating Block Material Glass Filled Polyester; Enclosure Rating NEMA 3/4/4X/Fb-11; Ambient Temperature Rating -13 to 104 Deg F; Includes Aja Mounting Box; Application Motor Generator Unit, Welder, Pump, Compressor and Cellular Relay Station; Approval UL 1682/1686/50E, CSA C22.2; Applicable Standard NEMA Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pin and Sleeve Receptacle Box Assembly
• Unspsc: 39121406
• UPC 12 Digit: 781381295222
• SKU Name: app aja20034250rs
