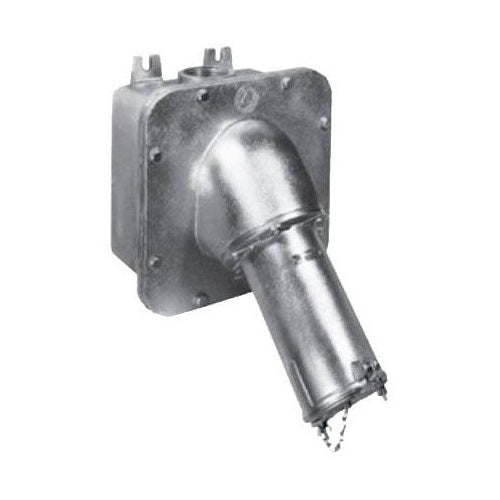

Appleton AJA40133400RS Receptacle w/Mounting Box

Overview

Appleton AJA40133400RS Receptacle w/Mounting Box

Product Specifications

• UPC: 78138132481
• Grounding Style: 1, SHELL
• Door Type: CLAMP COVER
• Hub Type: 4 INCH
• Material: EPOXY POWDER COATED COPPER FREE ALUMINUM
• Additional Information: APPLICATION COMPRESSOR, MOTOR GENERATOR UNIT, PUMP, SHIPPING DOCKS, SHIPPING PORTS, WELDING; CONTACT MATERIAL COPPER
• Catalog Number: AJA40133400RS
• Brand Name: Powertite.
• Type: POLARIZED, REVERSE SERVICE
• Constructional Feature: RAIN TIGHT
• Voltage Rating: 600 VAC 3 PHASE/250 VDC
• Current Rating: 400 AMPERE
• Number Of Poles: 3
• Number Of Wires: 3
• Catalog Description: PIN AND SLEEVE RECEPTACLE BOX ASSEMBLY, TYPE REVERSE SERVICE, ANGLED, CONSTRUCTIONAL FEATURE WEATHERPROOF, RAINTIGHT, VOLTAGE RATING 600 VAC AT 50 TO 400 HZ, 250 VDC, CURRENT RATING 400 AMPERE, NUMBER OF POLES 3, NUMBER OF WIRES 3, GROUNDING STYLE 1, SHELL, DOOR TYPE CLAMP COVER, HUB TYPE 4 INCH, MATERIAL EPOXY POWDER COATED COPPER-FREE ALUMINUM, INSULATING BLOCK MATERIAL, GLASS FILLED POLYESTER, APPLICATION COMPRESSOR, MOTOR GENERATOR UNIT, PUMP, SHIPPING DOCKS, SHIPPING PORTS, WELDING, TEMPERATURE RATING -40 TO 107 DEG C
• Category: Pin & Sleeve Devices
• Full Technical Description: Positive Polarization, Reverse Service Type; Epoxy Powder Coated Copper-Free Aluminum Material; 3 Wire(S); 600 Volt AC 50/400 Hertz 1-Phase, 250 Volt DC Voltage Rating; 400 Amp Current Rating; 3 Pole(S); Weatherproof, Rain Tight; 4 Inch Hub Type; Clamp; 1, Shell Grounding Style; POWERTITE[TM] Brand; Wire Size 400 to 1000 MCM; Wire Recess Diameter 1.25 Inch; Contact Material Copper; Insulating Block Material Glass Filled Polyester; Enclosure Rating NEMA 4/Fb-11; Ambient Temperature Rating -13 to 104 Deg F; Includes Aja Mounting Box; Application Motor Generator Unit, Welder, Pump, Compressor and Cellular Relay Station; Approval UL 1682/1686/50E, CSA C22.2; Applicable Standard NEMA Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pin and Sleeve Receptacle Box Assembly
• Unspsc: 39121406
• UPC 12 Digit: 781381324816
• SKU Name: app aja40133400rs

Resources

• Manufacturer Spec Sheet
