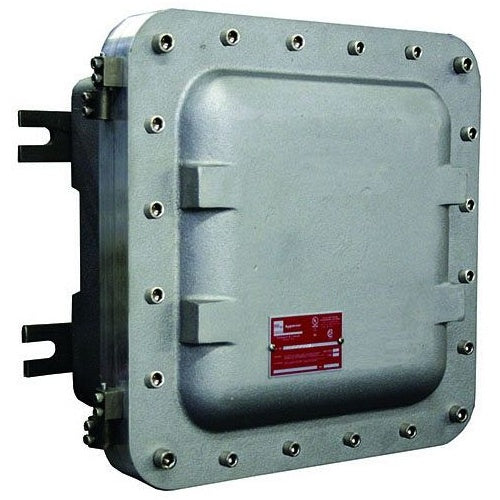

Appleton AJBEW122408 Explosion-Proof Watertight Junction Box

Overview

Appleton AJBEW122408 Explosion-Proof Watertight Junction Box

Product Specifications

• UPC: 78138184646
• Cover Finish: Shot Blast
• Mounting: Slotted
• Approval: UL (Canada and US), CSA C22.2, EX
• Additional Information: O-Ring Material Neoprene; Hinge Material Stainless Steel; Construction Feature Explosionproof, Dust-Ignitionproof; Application Terminal, Splicing Wire, Pull Box, Bus Box
• Catalog Number: AJBEW122408
• Hub Size: 4 Inch Diameter
• Overall Size: 28.75 Inch Length x 11.13 Inch Width x 16.75 Inch Depth
• Inner Size: 12 Inch Depth
• Enclosure: NEMA 4X, IP66, Class I, Division 1 and 2, Groups B, C, D, Class I, Zone 1 and 2, Groups IIA, IIB, +H 2, Class II, Division 1 and 2, Groups E, F, G, Class III
• Body Material: Sand Cast Copper-Free Aluminum
• Body Finish: Shot Blast
• Cover Material: Sand Cast Copper-Free Aluminum
• Catalog Description: EXPLOSIONPROOF JUNCTION BOX, HUB SIZE 4 INCH, OVERALL SIZE 28.75 INCH L X 16.75 INCH W X 11.13 INCH D, INNER SIZE 24 INCH L X 12 INCH W X 7.75 INCH D, COVER TYPE BOLT-ON, HINGED, ENCLOSURE CLASS I DIV 1 AND 2 GROUP B C D, CLASS I ZONE 1 AND 2 GROUP IIA IIB, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/9EFG, IP66, BODY MATERIAL SAND CAST COPPER-FREE ALUMINUM, BODY FINISH SHOT BLAST, COVER MATERIAL SAND CAST COPPER-FREE ALUMINUM, COVER FINISH SHOT BLAST, MOUNTING HORIZONTAL/VERTICAL WITH SLOTTED FEET, APPROVAL UL 886, CSA C22.2, APPLICATION HAZARDOUS LOCATION, USED ON TERMINAL, SPLICING WIRE, PULL BOX, BUS BOX, INCLUDES STAINLESS STEEL COVER BOLT, NEOPRENE O-RING, GALVANIZED STEEL MOUNTING PAN
• Category: Cast Boxes
• Full Technical Description: 28.75 Inch Length X 16.75 Inch Width X 11.13 Inch Depth Overall Size; 24 Inch Length X 12 Inch Width X 7.75 Inch Depth Inner Size; 4 Inch Hub Size; UL 1203, UL (Canada and Us), CSA C22.2 Approval; Horizontal/Vertical With Slotted Feet Mounting; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class I Zone 1 and 2 Group Iia Iib + H2, Class III, NEMA 4/7BCD/9EFG Enclosure; Bolt-on, Hinged Cover Type; Sand Copper-Free Cast Aluminum Body Material; Sand Copper-Free Cast Aluminum Shot Blast Cover Material; Shot Blast Body Finish; Shot Blast Cover
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Junction Box
• Unspsc: 39121332
• UPC 12 Digit: 781381846462
• SKU Name: app ajbew122408
