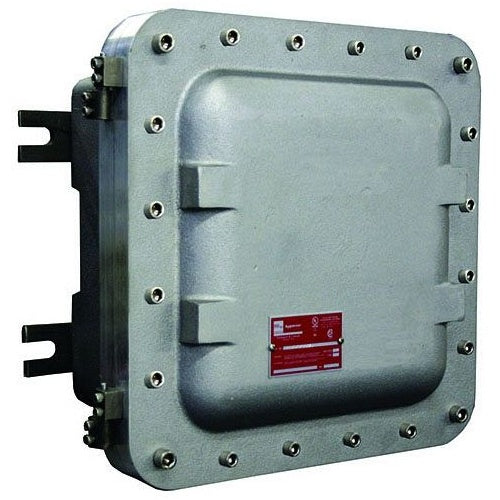

Appleton AJBEW153707 Explosion-Proof Watertight Junction Box

Overview

Appleton AJBEW153707 Explosion-Proof Watertight Junction Box

Product Specifications

• UPC: 78138184652
• Body Material: SAND CAST COPPER FREE ALUMINUM
• Body Finish: SHOT BLAST
• Cover Material: SAND CAST COPPER FREE ALUMINUM
• Cover Finish: SHOT BLAST
• Mounting: VERTICAL/HORIZONTAL WITH FEET
• Approval: UL 886, CSA C22.2
• Catalog Number: AJBEW153707
• Brand Name: Appleton[R]
• Model: AJBEW
• Hub Size: 4 INCH
• Overall Size: 43 INCH L X 21.25 INCH W X 12.06 INCH D
• Inner Size: 37.25 INCH L X 15.63 INCH W X 7.44 INCH D
• Cover Type: BOLT ON, HINGE
• Enclosure: CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/7B/7C/7D/9E/9F/9G
• Catalog Description: EXPLOSIONPROOF JUNCTION BOX, HUB SIZE 4 INCH, OVERALL SIZE 43 INCH L X 21.25 INCH W X 12.06 INCH D, INNER SIZE 37.25 INCH L X 15.63 INCH W X 7.44 INCH D, COVER TYPE BOLT-ON, HINGED, ENCLOSURE CLASS I DIV 1 AND 2 GROUP B C D, CLASS I ZONE 1 AND 2 GROUP IIA IIB, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/9EFG, IP66, BODY MATERIAL SAND CAST COPPER-FREE ALUMINUM, BODY FINISH SHOT BLAST, COVER MATERIAL SAND CAST COPPER-FREE ALUMINUM, COVER FINISH SHOT BLAST, MOUNTING HORIZONTAL/VERTICAL WITH SLOTTED FEET, APPROVAL UL 886, CSA C22.2, APPLICATION HAZARDOUS LOCATION, USED ON TERMINAL, SPLICING WIRE, PULL BOX, BUS BOX, INCLUDES STAINLESS STEEL COVER BOLT, NEOPRENE O-RING, GALVANIZED STEEL MOUNTING PAN
• Category: Cast Boxes
• Full Technical Description: 43 Inch Length X 21.25 Inch Width X 12.06 Inch Depth Overall Size; 37.25 Inch Length X 15.63 Inch Width X 7.44 Inch Depth Inner Size; 4 Inch Hub Size; UL 1203, UL (Canada and Us), CSA C22.2 Approval; Horizontal/Vertical With Slotted Feet Mounting; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class I Zone 1 and 2 Group Iia Iib + H2, Class III, NEMA 4/7BCD/9EFG Enclosure; Bolt-on, Hinged Cover Type; Sand Copper-Free Cast Aluminum Body Material; Sand Copper-Free Cast Aluminum Shot Blast Cover Material; Shot Blast Body Finish; Shot Bl
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Junction Box
• Unspsc: 39121332
• UPC 12 Digit: 781381846523
• SKU Name: app ajbew153707
