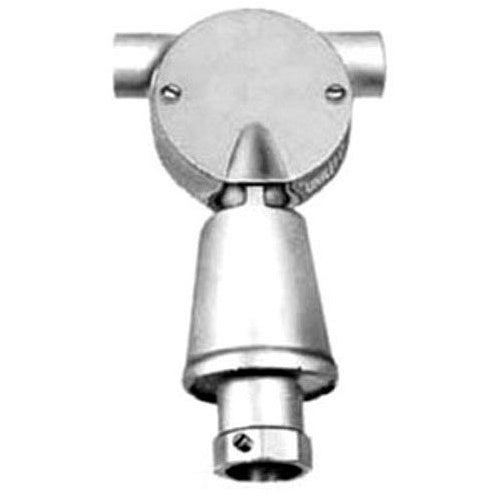

Appleton ALC1075-48 Cushion Fixture Hanger

Overview

Appleton ALC1075-48 Cushion Fixture Hanger

Product Specifications

• UPC: 78138114375
• Number Of Hubs: 2
• Hub Location: SIDE, FEED THROUGH
• Material: ZINC ELECTROPLATED DICHROMATE EPOXY POWDER COATED MALLEABLE IRON
• Approval: CSA
• Additional Information: AVAILABLE WITH CONNECTION BLOCK; FLEXIBLE; FOR USE WITH THREADED RIGID METAL CONDUIT AND IMC; FURNISHED WITH 3/4 TO 1/2 INCH REDUCER FOR 1/2 INCH STEM
• Catalog Number: ALC1075-48
• Brand Name: UNILETS[R]
• Model: ALC
• Type: CUSHION HANGER
• Fixture Type: FLUORESCENT, HID, INCANDESCENT
• Fixture Stem Size: 1/2 OR 3/4 INCH
• Conduit Size: 1 INCH
• Capacity: 12 TO 48 LB
• Catalog Description: UNILETS ALC SERIES CUSHION HANGER, SIZE: 3/4 OR 1/2 IN STEM, MATERIAL: MALLEABLE IRON WITH STEEL COVER, LAMP TYPE: INCANDESCENT, FLUORESCENT, HID, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), CONDUIT SIZE: 1 IN, STANDARD: UL FILE NUMBER E109438, FOR USE WITH THREADED RIGID METAL CONDUIT AND IMC
• Category: Lighting Accessories
• Full Technical Description: Cushion/Flexible Hanger Type; Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron (Body), Steel (Cover) Material; 2 Hub(S); UL Approval; 12 to 48 Pound Capacity; 1 Inch Conduit Size; Side, Feed-Through Hub Location; LED Fixture Type; 3/4 Inch or 1/2 Inch Fixture Stem Size; 20 Degree Swing Angle; Includes 3/4 to 1/2 Inch Reducer For 1/2 Inch Stem; Used on Threaded Imc/Rigid Metal Conduit; Applicable Standard Nec/Cec; ALC Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pendant Fixture Conduit Body Hanger
• Unspsc: 39111817
• UPC 12 Digit: 781381143752
• SKU Name: app alc107548

Resources

• Manufacturer Spec Sheet
