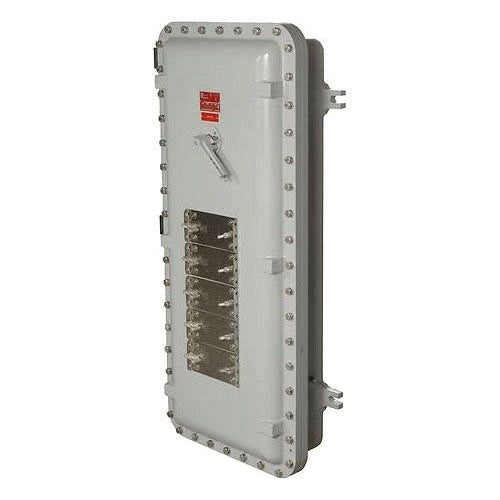

Appleton ALPND11A24M1 100A 240V Main Breaker Panelboard

Overview

Appleton ALPND11A24M1 100A 240V Main Breaker Panelboard

Product Specifications

• UPC: 78138190527
• Number Of Circuits: 24
• Interrupting Rating: 10000 AMPERE
• Enclosure Material: COPPER FREE ALUMINUM
• Enclosure Finish: GRAY EPOXY POWDER COATED
• Enclosure: CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/4X/7B/7C/7D/9E/9F/9G
• Mounting: SLOTTED FEET
• Size: 21 INCH W X 13 INCH D X 42.94 INCH H
• Approval: UL 67, UL 877, UL 1203, CSA C22.2
• Catalog Number: ALPND11A24M1
• Brand Name: Appleton[R]
• Model: ALPN
• Type: MAIN BREAKER
• Constructional Feature: EXPLOSION PROOF, DUST IGNITION PROOF, WATER TIGHT
• Voltage Rating: 120/240 V
• Current Rating: 100 AMPERE
• Configuration: 1 PHASE 3 WIRE
• Catalog Description: EXPLOSIONPROOF LIGHTING DISTRIBUTION PANELBOARD, TYPE MAIN BREAKER, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, WATERTIGHT, VOLTAGE RATING 120/240 VAC, CURRENT RATING 100 AMPERE, CONFIGURATION 1 PHASE 3 WIRE, NUMBER OF CIRCUITS 24, NUMBER OF BREAKER POLES 1, INTERRUPTING RATING 10000 AMPERE, ENCLOSURE MATERIAL COPPER FREE ALUMINUM, ENCLOSURE FINISH GRAY EPOXY POWDER COATED, ENCLOSURE CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, CLASS I ZONE 1 GROUP IIB, NEMA 4/4X/7BCD/9EFG, MOUNTING FEET, SIZE 21 INCH W X 13 INCH D X 42.94 INCH H, APPROVAL UL 1203, MATERIAL COPPER-FREE ALUMINUM (COVER, BREAKER OPERATOR), STAINLESS STEEL ( HINGE, COVER BOLT), COPPER (BUS BAR), NEOPRENE (O-RING), APPLICATION HAZARDOUS LOCATION
• Category: Single Phase Main Breaker Bolt-On Lighting Panelboard Interiors
• Full Technical Description: Bab, Main Breaker Type; 21 Inch Width X 13 Inch Depth X 42.94 Inch Height Size; Copper-Free Aluminum Enclosure Material; 1-Phase 3-Wire Configuration; UL 1203 Approval; 120/240 Volt AC Voltage Rating; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class I Zone 1 Group Iib + H2, Class III, NEMA 4/4X/7BCD/9EFG Enclosure; 100 Amp Current Rating; 10000 Amp Interrupting Rating; Corrosion Resistant, Explosionproof, Dust Ignitionproof, Water Tight; 24 Circuit(S); Gray Epoxy Powder Coate
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Lighting Panelboard
• Unspsc: 39121103
• UPC 12 Digit: 781381905275
• SKU Name: app alpnd11a24m1

Resources

• Manufacturer Spec Sheet
