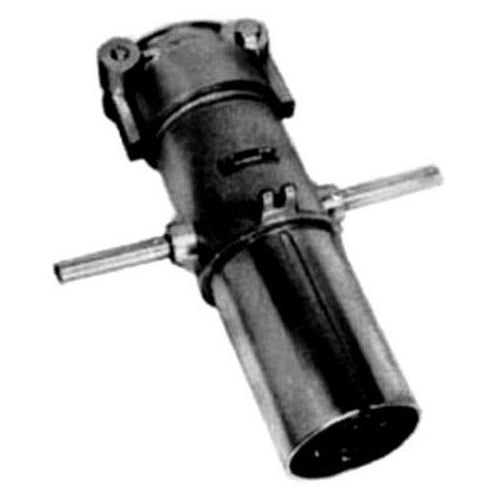

Appleton AP40033E-RS 400A 3W3P Plug

Overview

Appleton AP40033E-RS 400A 3W3P Plug

Product Specifications

• UPC: 78138132488
• Grounding Style: 1, Shell
• Minimum Cable Outer Diameter: 1.875 Inch
• Maximum Cable Outer Diameter: 2.5 Inch
• Material: Epoxy Powder Coated Copper Free Aluminum
• Approval: UL 1682/1689/50E, CSA C22.2
• Additional Information: Contact Material Copper; Application Compressor, Motor Generator Unit, Pump, Shipping Docks, Shipping Ports, Welding
• Catalog Number: AP40033E-RS
• Brand Name: Powertite[R]
• Type: Compressor, Motor Generator Unit, Polarized, Pump, Reverse Service, Welding, Spring Door
• Constructional Feature: Raintight
• Voltage Rating: 600 VAC 3-Phase, 250 VDC
• Current Rating: 400 Ampere
• Number Of Poles: 3
• Number Of Wires: 3
• Catalog Description: POWERTITE GROUNDING STYLE 1 PLUG, NUMBER OF POLES: 3, NUMBER OF WIRES: 3, WIRE SIZE: 400 - 1000 MCM, AMPERAGE RATING: 400 AMP, VOLTAGE RATING: 600 VAC AT 50 - 400 HZ, 250 VDC, PHASE: 3 PH, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM)
• Category: Pin & Sleeve Devices
• Full Technical Description: Positive Polarization, Reverse Service Type; Epoxy Powder Coated Copper-Free Aluminum Material; 1.875 Inch min. Cable Outer Diameter; 2.5 Inch Max. Cable Outer Diameter; 3 Wire(S); UL 1682/1686/50E, CSA C22.2 Approval; 600 Volt AC 50/400 Hertz 3-Phase, 250 Volt DC Voltage Rating; 400 Amp Current Rating; 3 Pole(S); Weatherproof; 1, Shell Grounding Style; POWERTITE[TM] Brand; Wire Recess Diameter 0.84 Inch; Hub Size 4 Inch; Finish Fiberglass Reinforced Polyester (Insulating Block); Operating Temperature Rating -13 to 104 Deg F; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pin and Sleeve Plug
• Unspsc: 39121402
• UPC 12 Digit: 781381324885
• SKU Name: app ap40033ers
